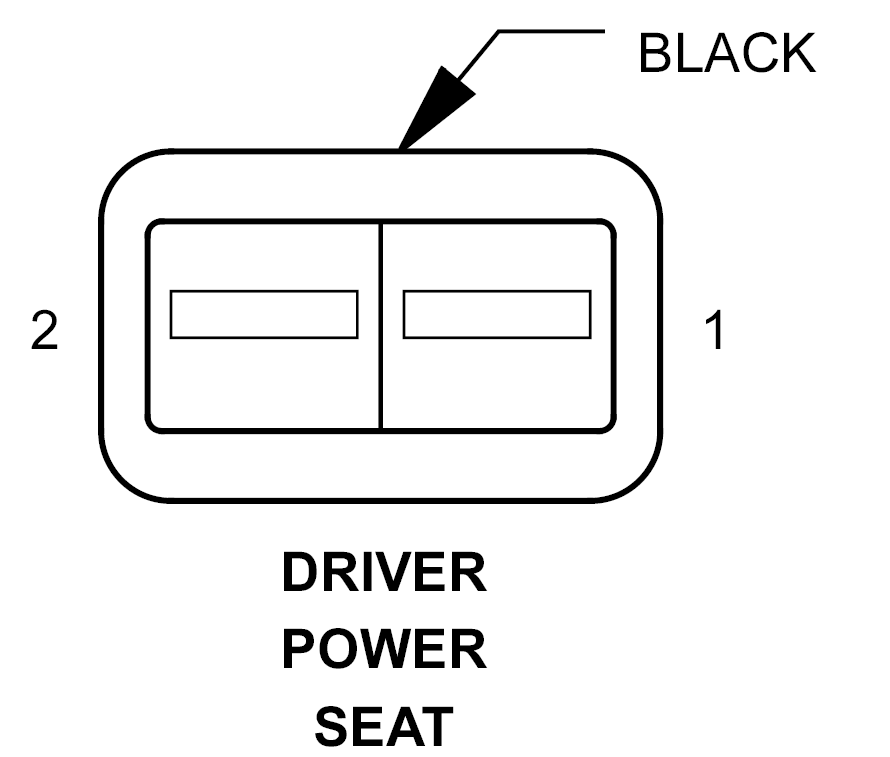

Driver Power Seat Connector End View
DRIVER POWER SEAT - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
14RD/BK |
FUSED POWER SEAT RELAY OUTPUT |
| 2 |
14BR |
GROUND |
