Coil On Plug 4 Connector End View

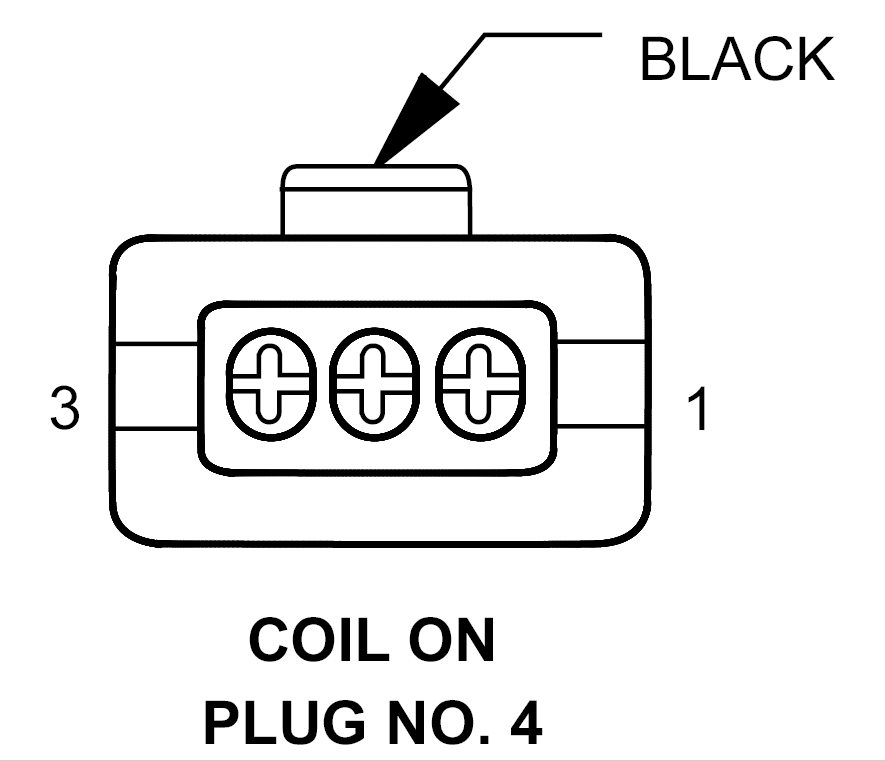

COIL ON PLUG NO. 4 - BLACK 3-WAY

GZH780087Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BL COIL ON PLUG DRIVER NO. 4
2 18BK/YL FUSED IGNITION SWITCH OUTPUT
3 18BL/WT COIL ON PLUG DRIVER NO. 4
