Balance Shaft Module: Removal

WARNING: This page is about a different car, the 2008 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Remote Ground

Courtesy of CHRYSLER LLC

Disconnect the remote battery terminal (1).

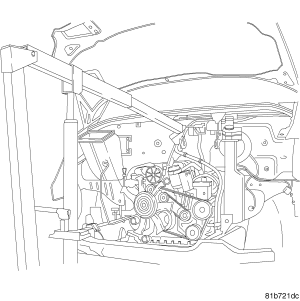

Fig 2: Engine Lift
Courtesy of CHRYSLER LLC
Remove the engine from the vehicle. See REMOVAL .
Remove the flex plate.

Fig 3: Slide Rails
Courtesy of CHRYSLER LLC
Remove the front cover. See REMOVAL .

Fig 4: Exploded View Of Timing Chain Tensioner
Courtesy of CHRYSLER LLC
Remove the timing chain tensioner.

Fig 5: Balance Shaft And Balance Weight
Courtesy of CHRYSLER LLC
Remove the balance weight from the rear of the balance shaft.

Fig 6: Slide Rails
Courtesy of CHRYSLER LLC
Push the timing chain downward and off the balance shaft sprocket.
Remove the balance shaft.
