Installation-Front Heat Shield

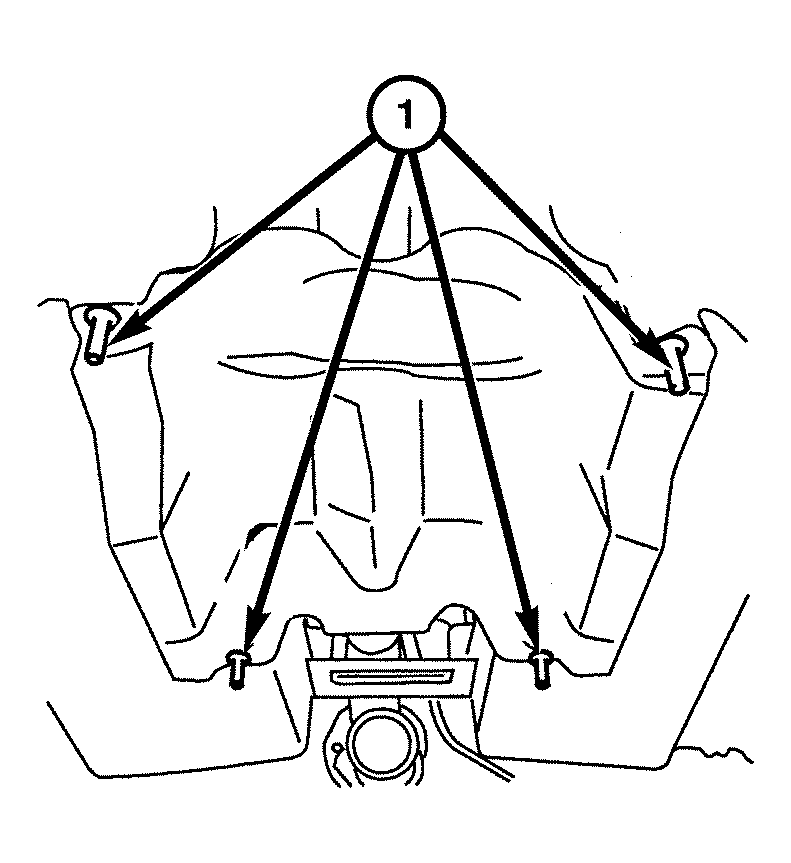

Fig 1: Removing/Installing Heat Shield Nuts
GC0032292Courtesy of CHRYSLER LLC
  1. Position the heat shield on the floor pan.
  2. Install the heat shield nuts (1). Tighten the nuts to 10 N.m (89 in. lbs.).
  3. Install the front exhaust section. See INSTALLATION .
  4. Start the engine and check for exhaust leaks.
