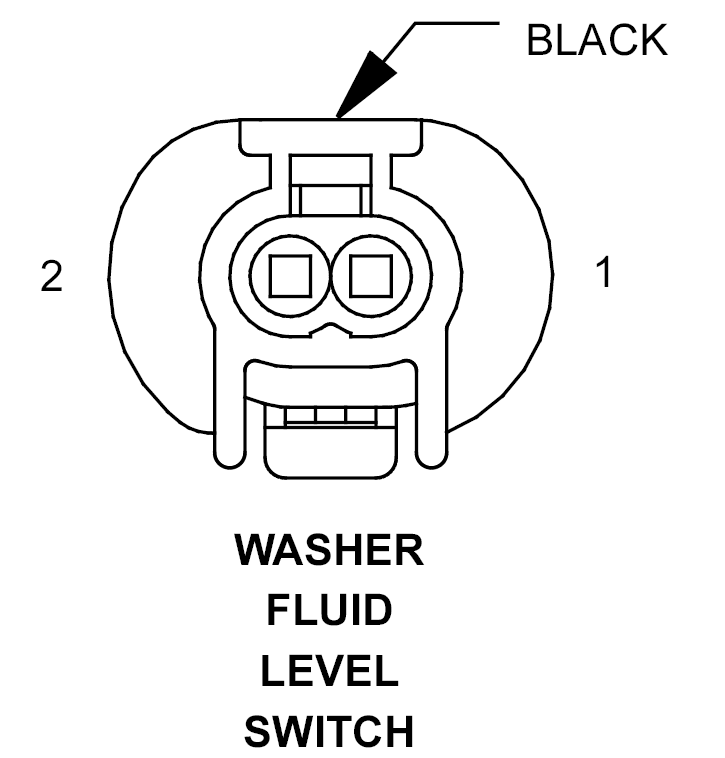

Washer Fluid Level Switch Connector End View
WASHER FLUID LEVEL SWITCH - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR |
COOLANT/WASHER LEVEL RETURN |
| 2 |
20BR/BL |
COOLANT/WASHER LEVEL COMBINATION |
