Transmission Control Module Connector End View (C2)

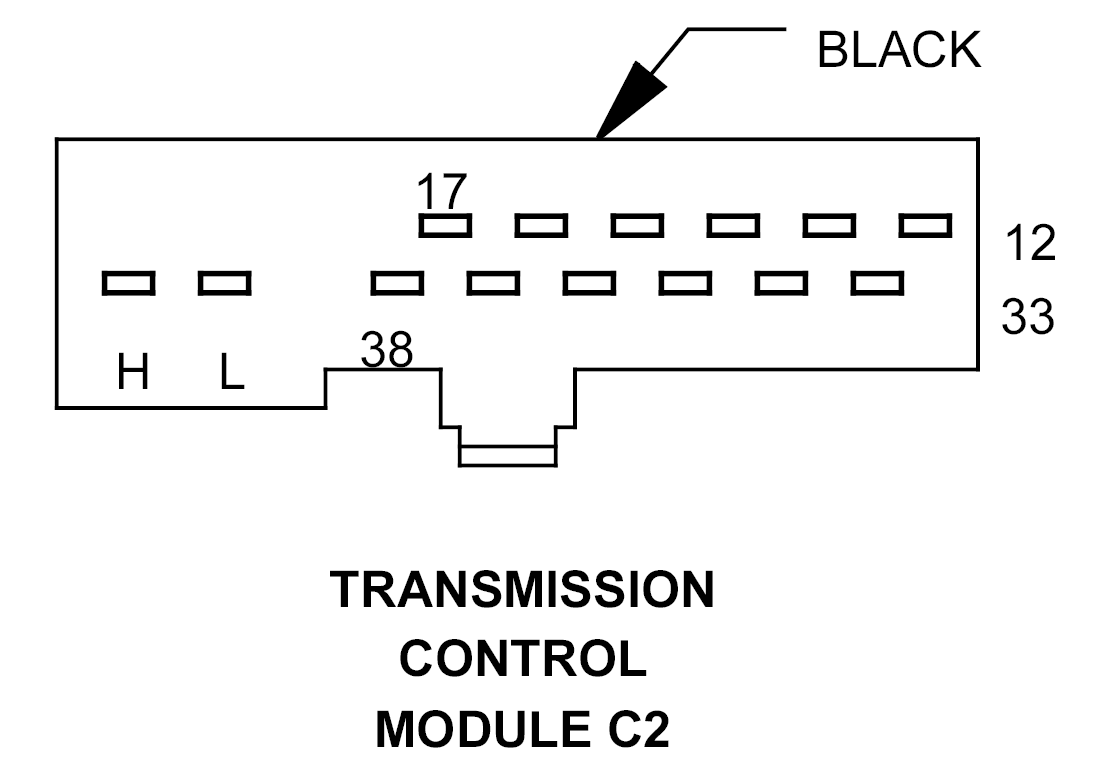

TRANSMISSION CONTROL MODULE C2 - BLACK 12-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
12	20WT	N2 INPUT SPEED SENSOR
13	20BL/DG	SENSOR SUPPLY VOLTAGE
14	20GY/RD	1-2/4-5 SOLENOID CONTROL
15	20GY/VT	3-4 SOLENOID CONTROL
16	20GY/DG	2-3 SOLENOID CONTROL
17	20GY/BK	TCC SOLENOID CONTROL
33	20BR	SENSOR GROUND
34	20BL/YL	TEMP SENSOR P/N SWITCH
35	20BK	N3 INPUT SPEED SENSOR
36	20DG/YL	MODULATION PRESSURE SOLENOID CONTROL
37	20DG	SHIFT PRESSURE SOLENOID CONTROL
38	18RD	SOLENOID SUPPLY VOLTAGE
H	-	-
L	-	-
