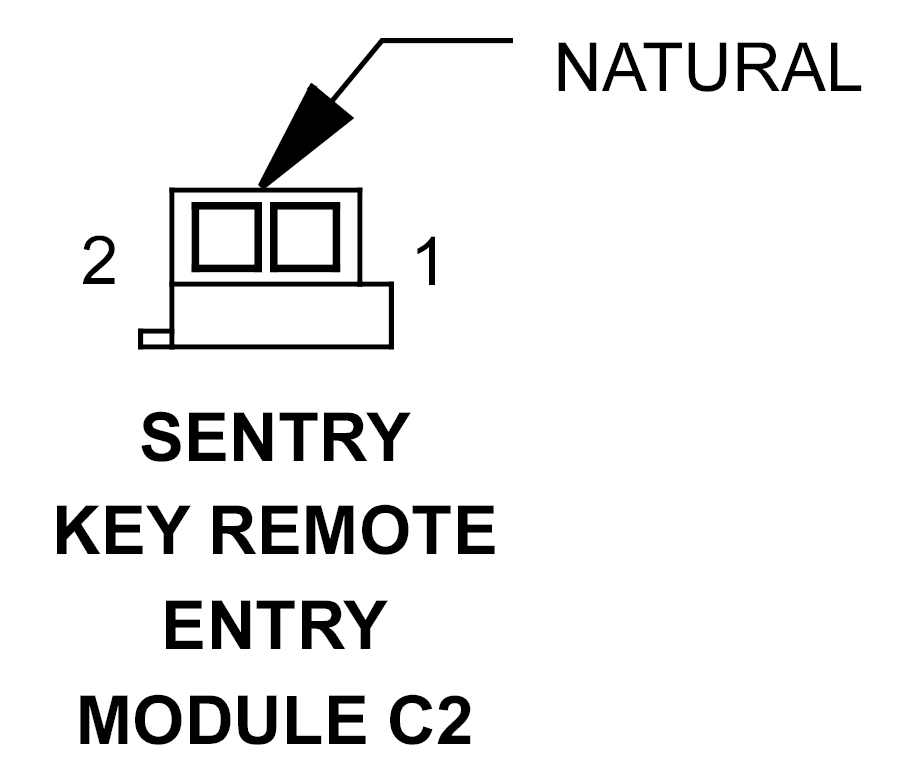

Sentry Key Remote Entry Module Connector End View (C2)
SENTRY KEY REMOTE ENTRY MODULE C2 - NATURAL 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20DG |
CAN C BUS (-) |
| 2 |
20WT |
CAN C BUS (+) |
