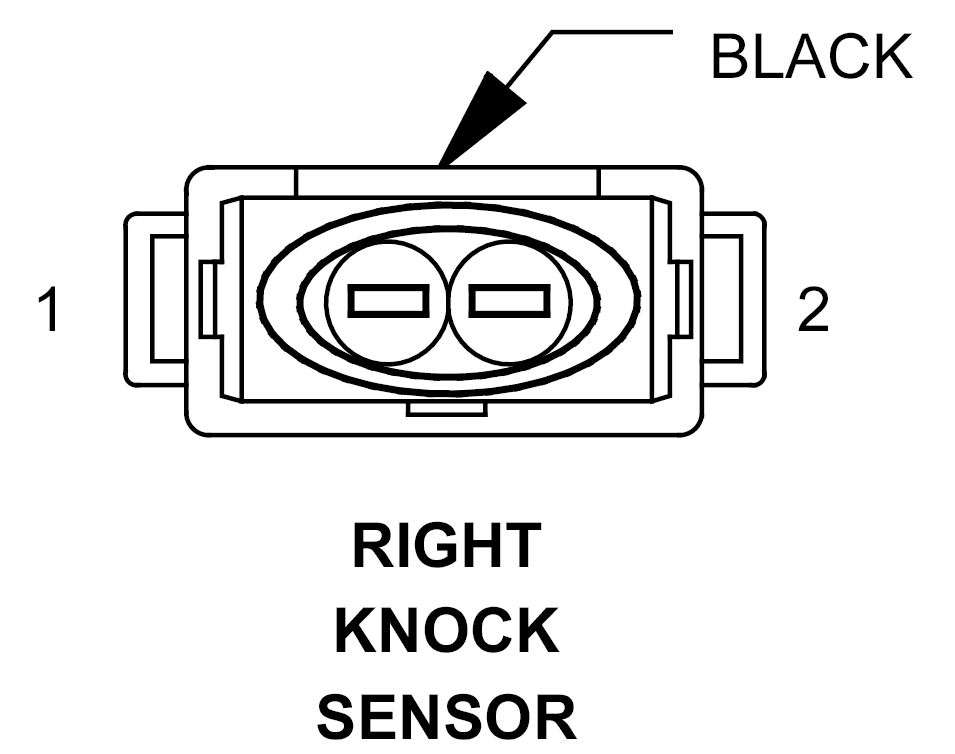

Right Knock Sensor Connector End View
RIGHT KNOCK SENSOR - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BK |
SENSOR GROUND |
| 2 |
20VT |
RIGHT KNOCK SENSOR SIGNAL |
