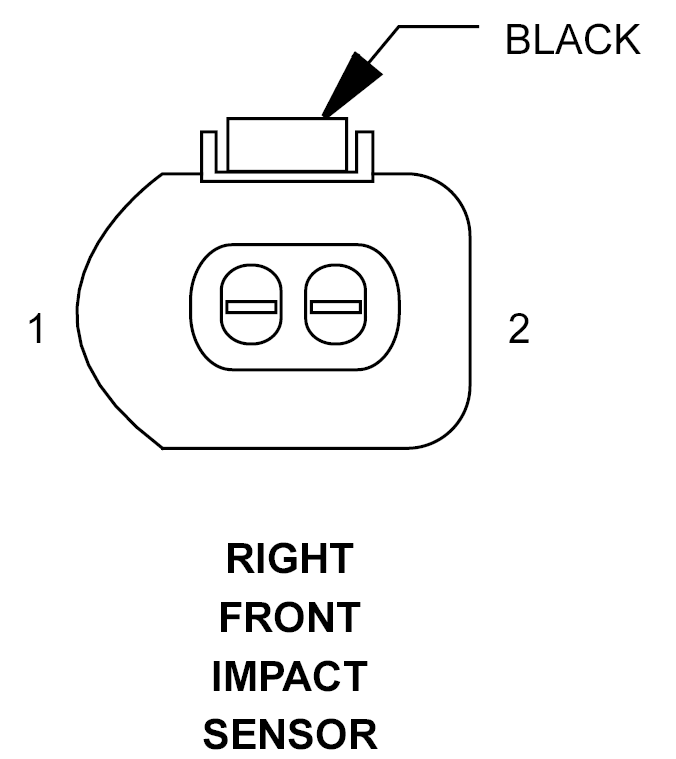

Right Front Impact Sensor Connector End View
RIGHT FRONT IMPACT SENSOR - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20YL/WT |
RIGHT FRONT IMPACT SENSOR SIGNAL |
| 2 |
20BR |
GROUND |
