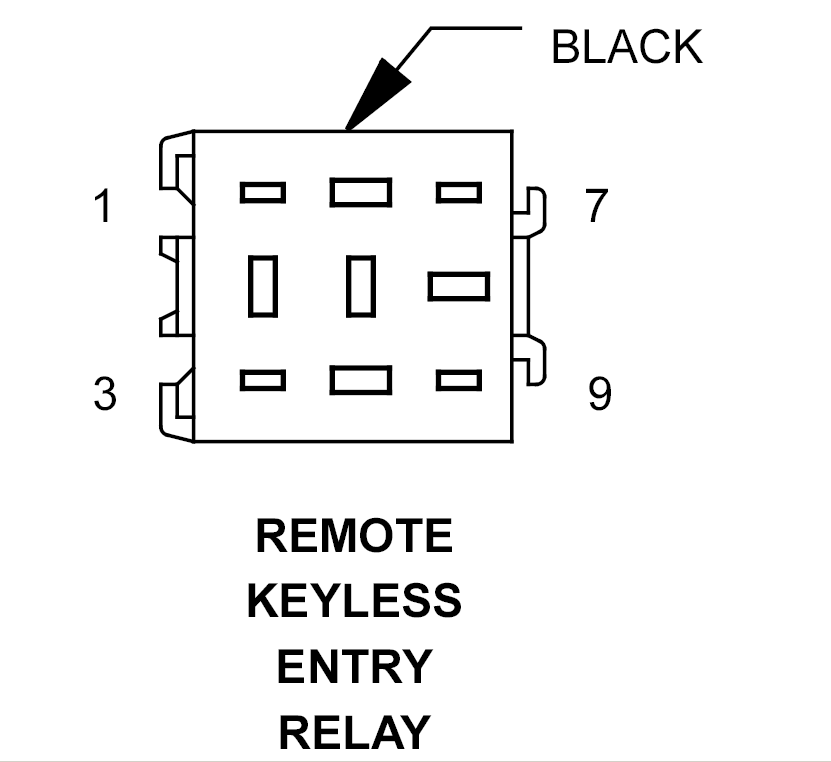

Remote Keyless Entry Relay Connector End View
REMOTE KEYLESS ENTRY RELAY - BLACK 9-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
18BK/WT |
REMOTE KEYLESS ENTRY RELAY OUTPUT |
| 3 |
- |
- |
| 4 |
18RD/YL |
FUSED B(+) |
| 5 |
18BK/DG |
REMOTE KEYLESS ENTRY RELAY OUTPUT |
| 6 |
20BK/YL |
REMOTE KEYLESS ENTRY RELAY CONTROL |
| 7 |
- |
- |
| 8 |
14RD/YL |
FUSED B(+) |
| 9 |
- |
- |
