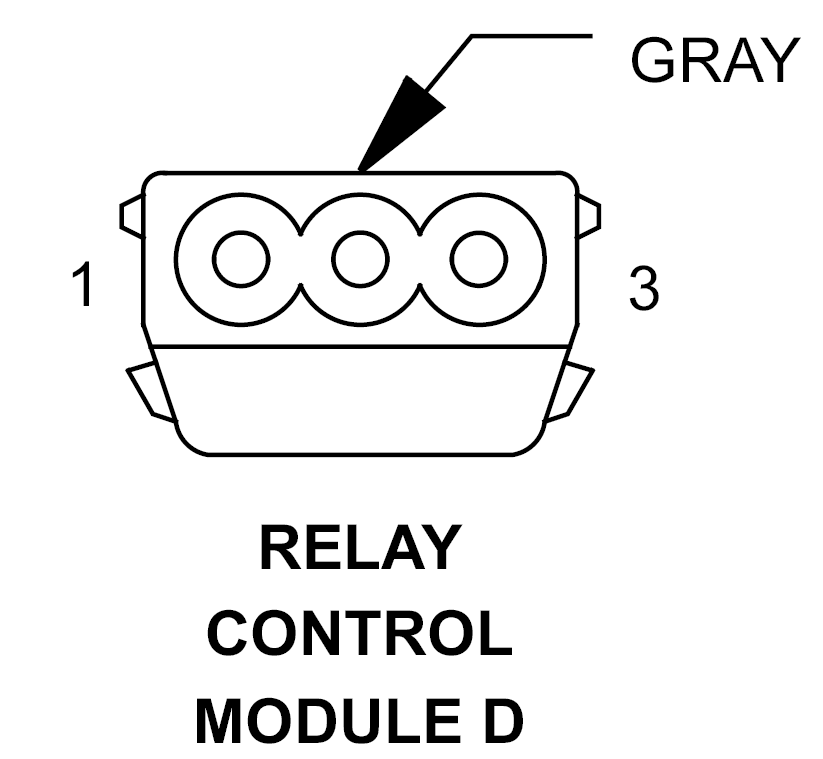

Relay Control Module D Connector End View
RELAY CONTROL MODULE D - GRAY 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20YL |
HORN RELAY CONTROL |
| 2 |
18PK/RD |
FUSED IGNITION SWITCH OUTPUT |
| 3 |
- |
- |
