Relay Control Module A Connector End View

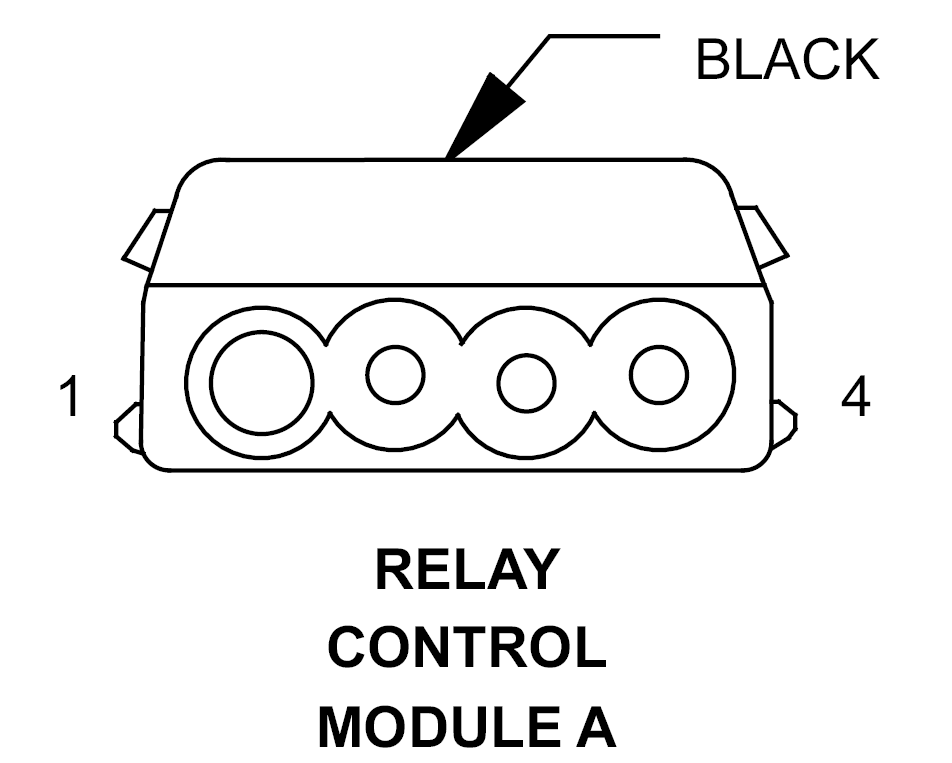

RELAY CONTROL MODULE A - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR/VT |
AIR PUMP RELAY CONTROL |
| 2 |
16RD/BL |
FUSED ENGINE CONTROL RELAY OUTPUT |
| 3 |
16RD/DG |
FUSED ENGINE CONTROL RELAY OUTPUT |
| 4 |
12RD/WT |
AIR PUMP RELAY OUTPUT |
