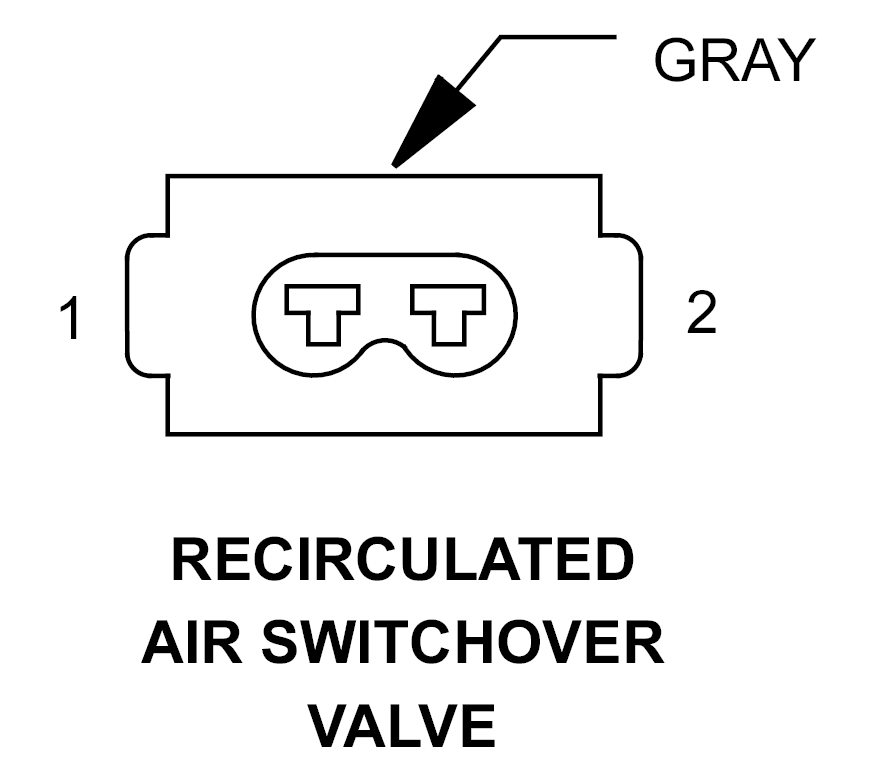

Recirculated Air Switchover Valve Connector End View
RECIRCULATED AIR SWITCHOVER VALVE - GRAY 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
18BR/YL |
RECIRCULATED AIR SWITCHOVER VALVE CONTROL |
| 2 |
18PK/RD/BL |
FUSED IGNITION SWITCH OUTPUT |
