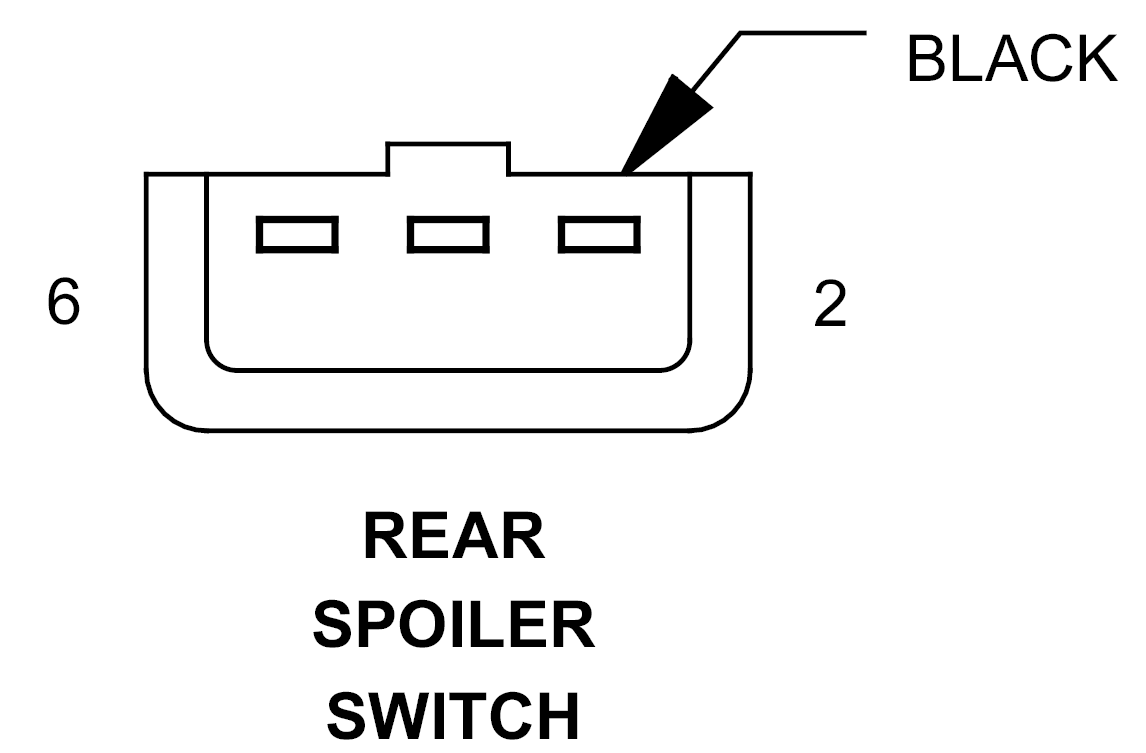

Rear Spoiler Switch Connector End View
REAR SPOILER SWITCH - BLACK 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 2 |
20GY/WT |
REAR SPOILER DIAGNOSTIC LED CONTROL |
| 4 |
- |
- |
| 6 |
20DG/WT |
REAR SPOILER SWITCH SENSE |
