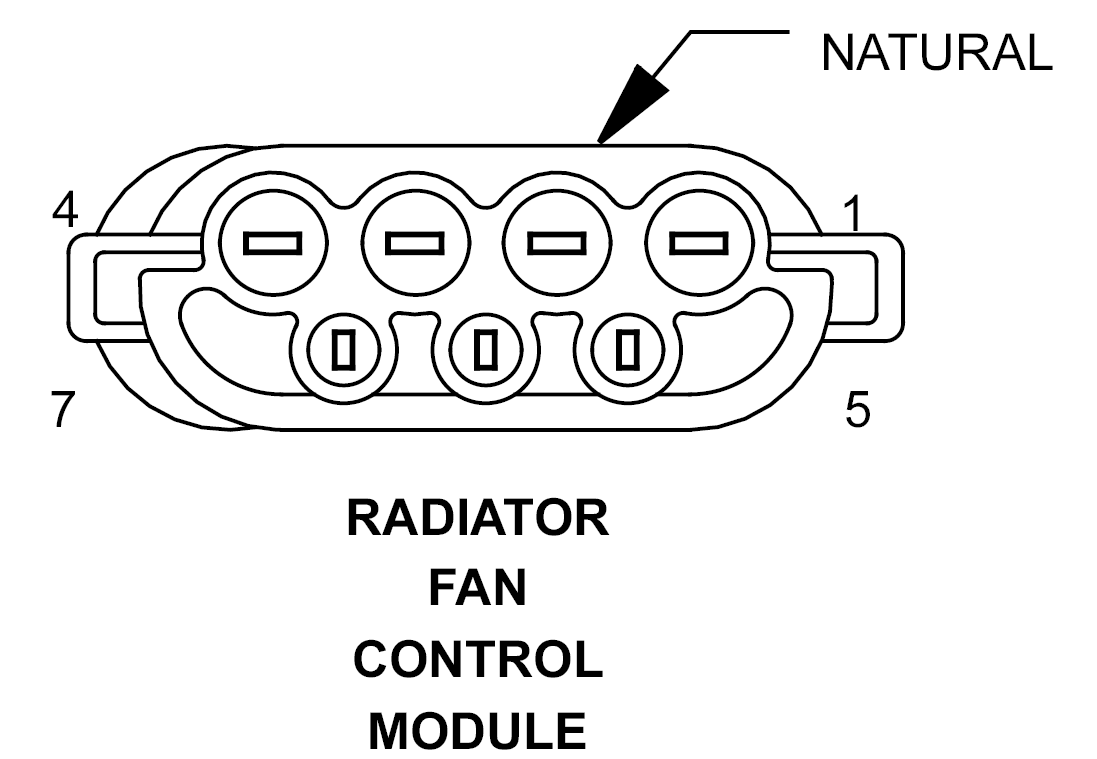

Radiator Fan Control Module Connector End View
RADIATOR FAN CONTROL MODULE - NATURAL 7-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
8BR/BK |
RADIATOR FAN CONTROL MODULE GROUND |
| 2 |
8BR |
GROUND |
| 3 |
8BK |
FUSED B(+) |
| 4 |
8BK/DG |
RADIATOR FAN CONTROL MODULE OUTPUT |
| 5 |
20GY |
RADIATOR FAN CONTROL |
| 6 |
20PK/RD |
FUSED IGNITION SWITCH OUTPUT |
| 7 |
- |
- |
