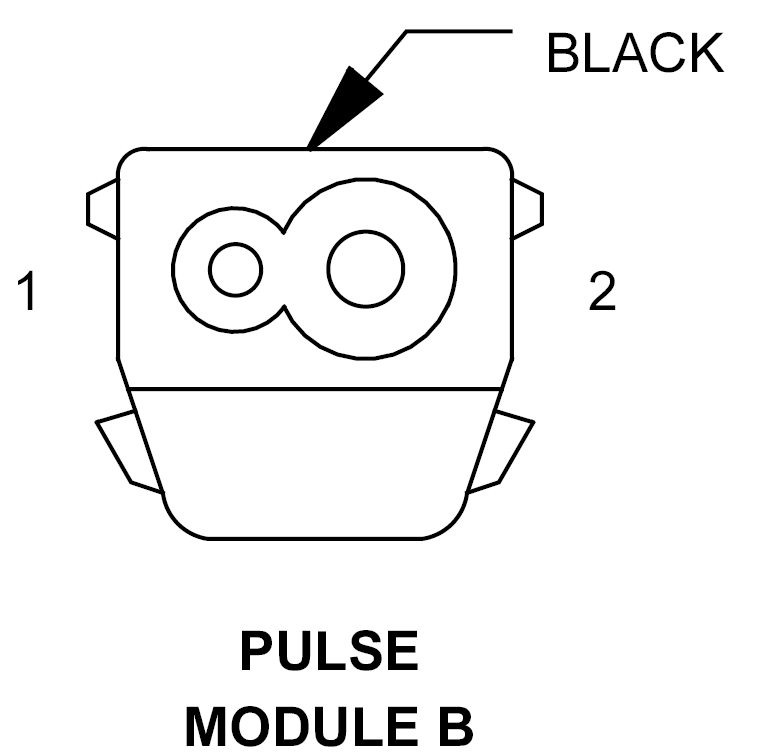

Pulse Module B Connector End View
PULSE MODULE B - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
16VT |
FUSED IGNITION SWITCH OUTPUT (A/T) |
| 1 |
20VT |
CLUTCH INTERLOCK SWITCH OUTPUT (M/T) |
| 2 |
14PK/RD |
FUSED IGNITION SWITCH OUTPUT |
