Powertrain Control Module Connector End View (C1)

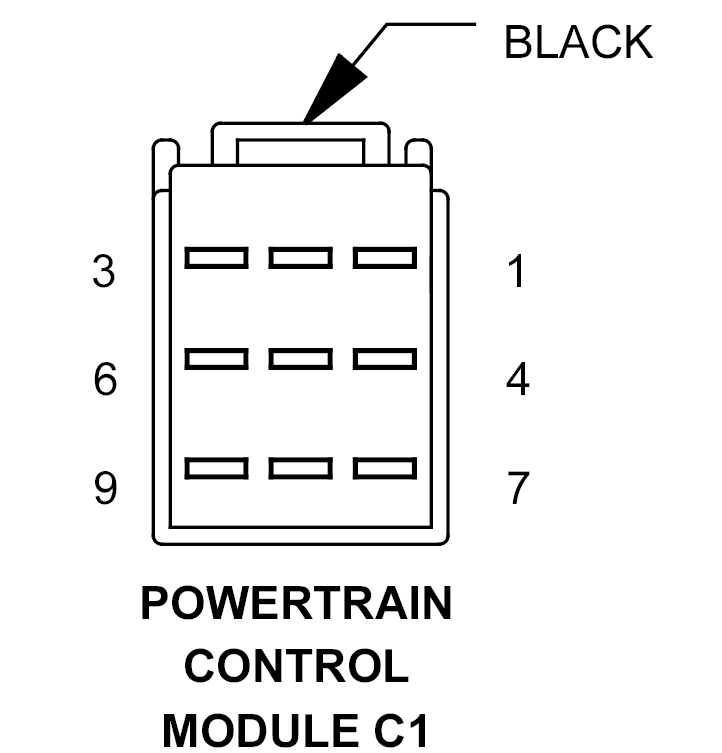

POWERTRAIN CONTROL MODULE C1 - BLACK 9-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	18BK/WT	COIL ON PLUG DRIVER NO. 1
3	18BL	THROTTLE CONTROL MOTOR 1
4	18GY/WT	COIL ON PLUG DRIVER NO. 6
5	18BL/WT	COIL ON PLUG DRIVER NO. 4
6	18BK	THROTTLE CONTROL MOTOR 2
7	18DG/WT	COIL ON PLUG DRIVER NO. 3
8	-	-
9	18YL/WT	COIL ON PLUG DRIVER NO. 2
