Power Mirror Switch Connector End View

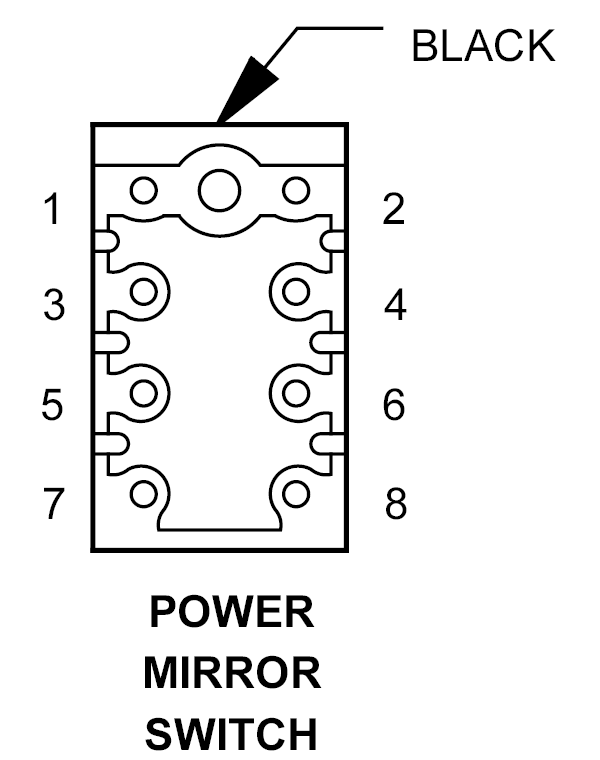

POWER MIRROR SWITCH - BLACK 8-WAY

GZH780182Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BR GROUND
2 - -
3 18GY LEFT MIRROR COMMON DRIVER
4 18GY/VT RIGHT MIRROR COMMON DRIVER
5 18WT RIGHT MIRROR VERTICAL DRIVER
5 18BK LEFT MIRROR VERTICAL DRIVER
6 18PK/RD/WT FUSED B(+)
7 18WT LEFT MIRROR HORIZONTAL DRIVER
8 18BK/VT RIGHT MIRROR HORIZONTAL DRIVER
