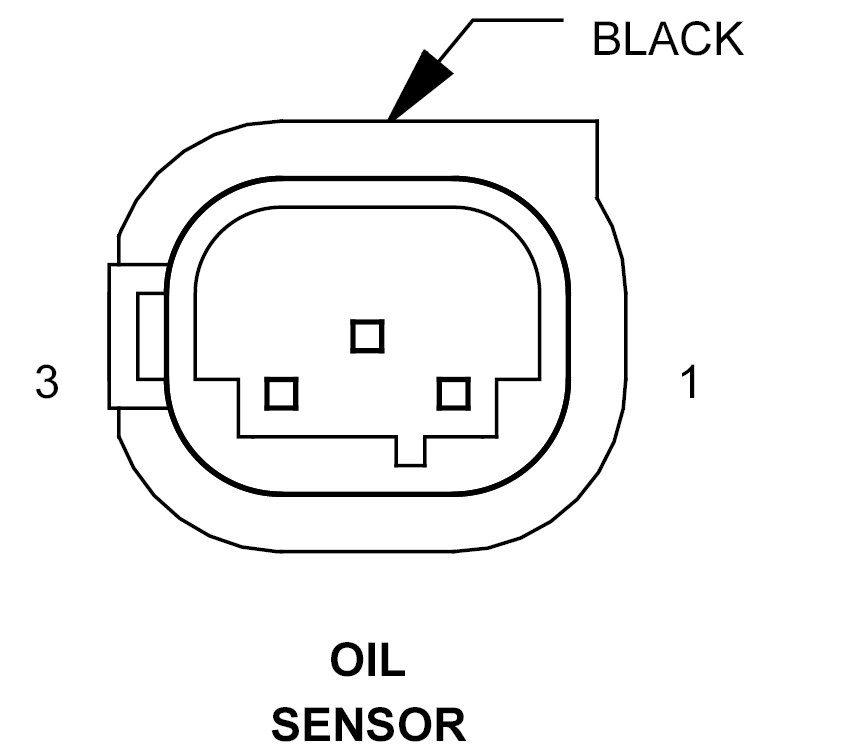

Oil Sensor Connector End View
OIL SENSOR - BLACK 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20GY/BL |
OIL SENSOR SIGNAL |
| 2 |
20BR/BK |
SENSOR GROUND |
| 3 |
20RD/YL |
5 VOLT SUPPLY |
