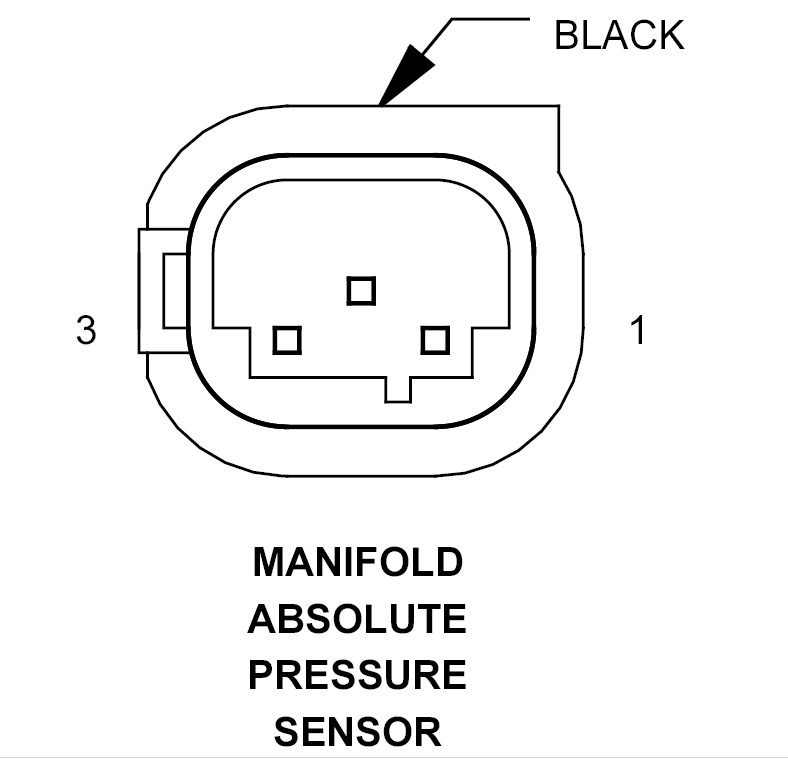

Manifold Absolute Pressure Sensor Connector End View
MANIFOLD ABSOLUTE PRESSURE SENSOR - BLACK 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR/GY |
SENSOR GROUND |
| 2 |
20RD/DG |
MAP SENSOR SIGNAL |
| 3 |
20PK/BK |
5 VOLT SUPPLY |
