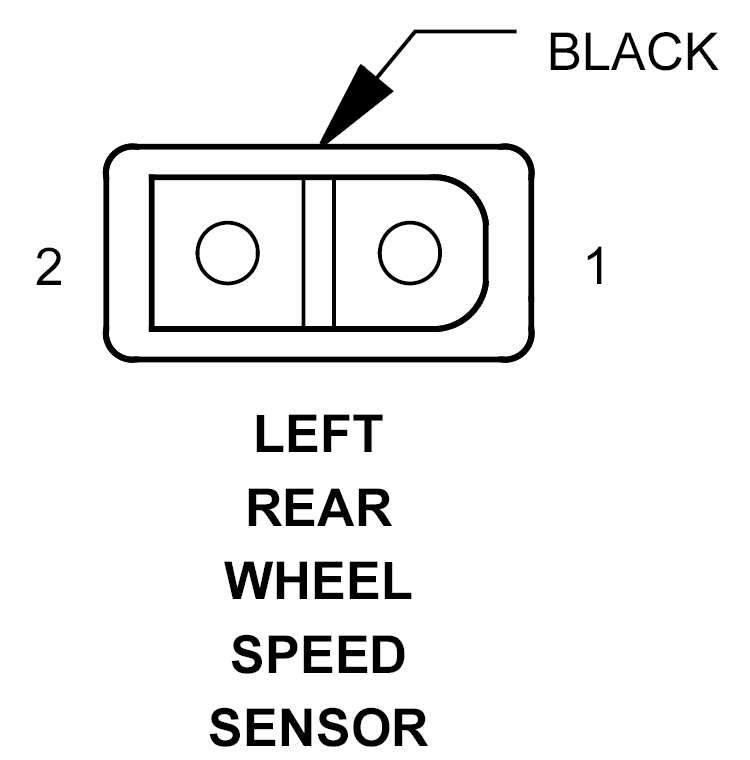

Left Rear Wheel Speed Sensor Connector End View
LEFT REAR WHEEL SPEED SENSOR - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR |
LEFT REAR WHEEL SPEED SENSOR SIGNAL |
| 2 |
20BL |
LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY |
