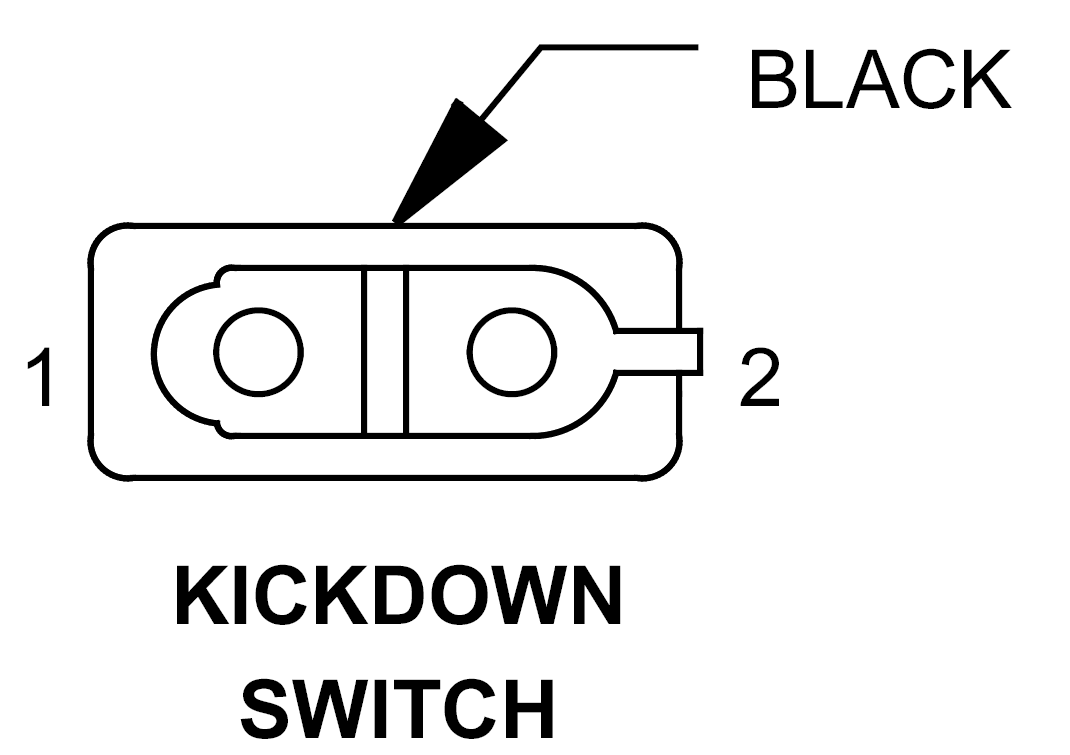

Kick Down Switch Connector End View
KICK DOWN SWITCH - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR |
GROUND |
| 2 |
20BK |
KICKDOWN SWITCH SIGNAL |
