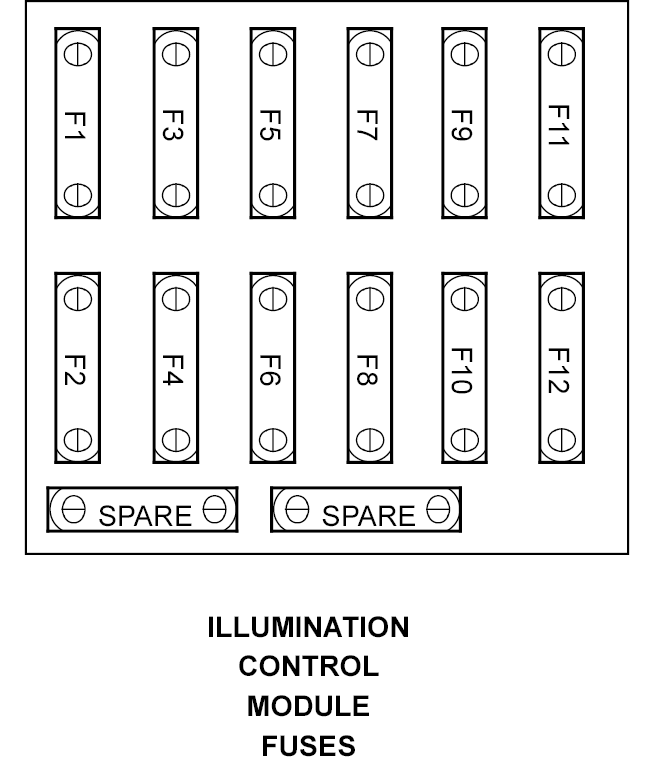

Illumination Control Module Fuses Connector End View

ILLUMINATION CONTROL MODULE FUSES

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	18RD/WT	FUSED IGNITION SWITCH OUTPUT
3	INTERNAL	HIGH BEAM INDICATOR LAMP OUTPUT
4	INTERNAL	FUSED IGNITION SWITCH OUTPUT
5	16WT/BK	HIGH BEAM INDICATOR LAMP OUTPUT
6	16YL	FUSED ILLUMINATION CONTROL MODULE OUTPUT
7	INTERNAL	FUSED ILLUMINATION CONTROL MODULE OUTPUT
8	16YL/BK	FUSED ILLUMINATION CONTROL MODULE OUTPUT
9	INTERNAL	FUSED ILLUMINATION CONTROL MODULE OUTPUT
10	INTERNAL	FUSED ILLUMINATION CONTROL MODULE OUTPUT
11	INTERNAL	FUSED ILLUMINATION CONTROL MODULE OUTPUT
12	18GY/DG	FUSED ILLUMINATION CONTROL MODULE OUTPUT (EXPORT)
