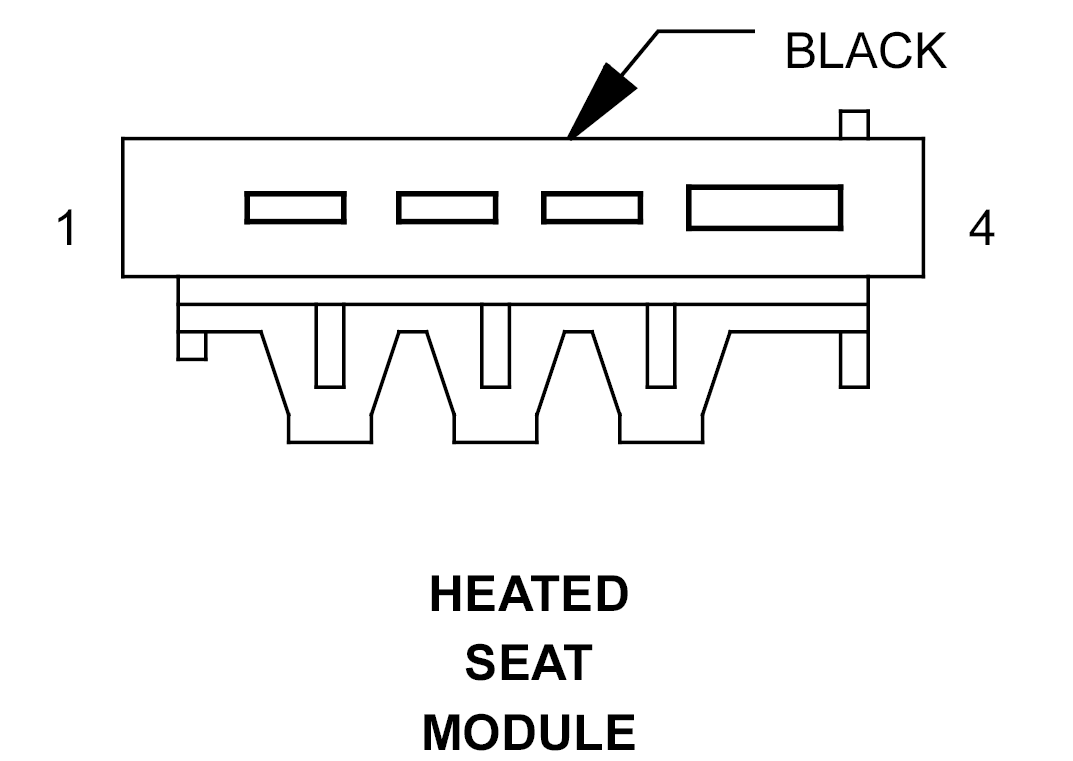

Heated Seat Module Connector End View
HEATED SEAT MODULE - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
16BK/VT |
RIGHT HEATED SEAT OUTPUT |
| 2 |
20PK/YL/DG |
FUSED IGNITION SWITCH OUTPUT |
| 3 |
16BK/GY |
LEFT HEATED SEAT OUTPUT |
| 4 |
14RD/YL |
FUSED B(+) |
