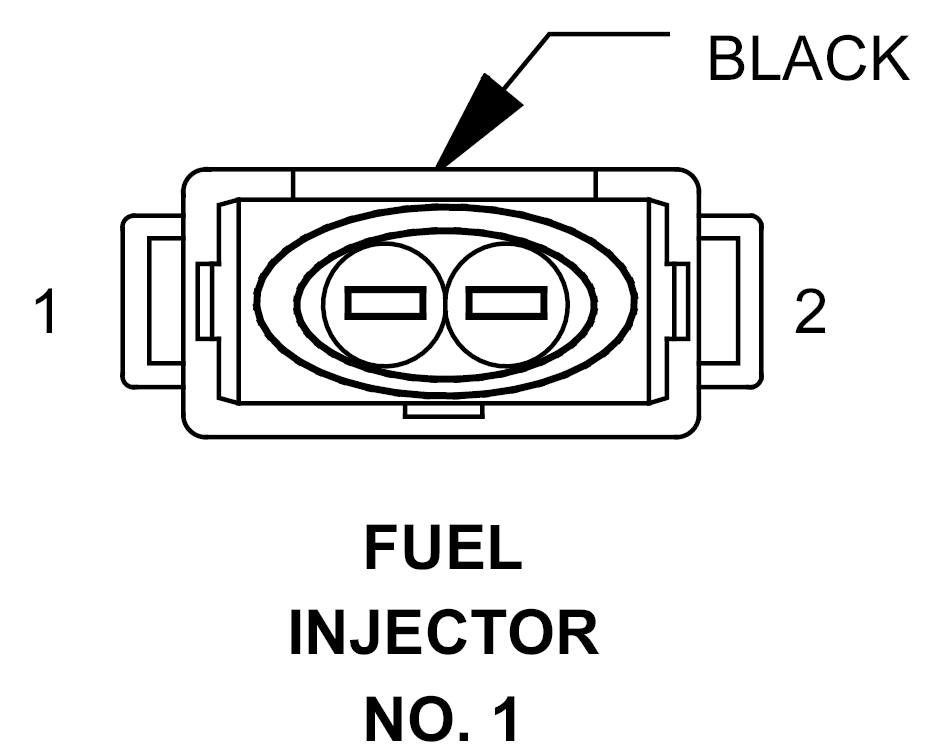

Fuel Injector 1 Connector End View
FUEL INJECTOR NO. 1 - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
18GY/BK |
FUSED ENGINE CONTROL RELAY OUTPUT |
| 2 |
18GY/BK |
FUEL INJECTOR NO. 1 CONTROL |
