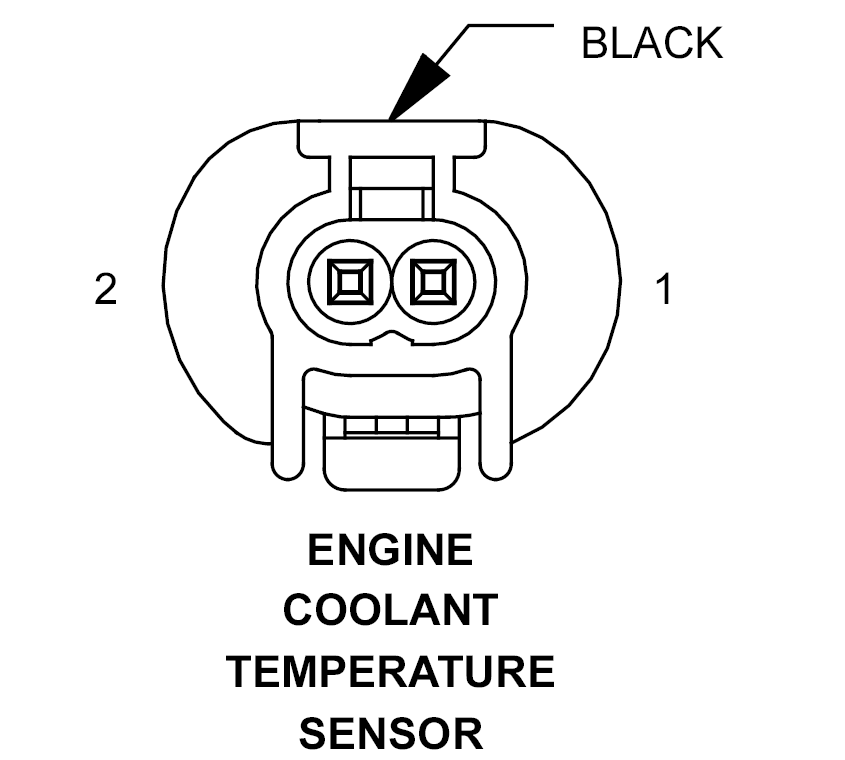

Engine Coolant Temperature Sensor Connector End View
ENGINE COOLANT TEMPERATURE SENSOR - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20DG/RD |
ENGINE COOLANT TEMPERATURE SENSOR SIGNAL |
| 2 |
20BR/WT |
SENSOR GROUND |
