Electronic Stability Program Yaw Rate Lateral Acceleration Sensor Connector End View

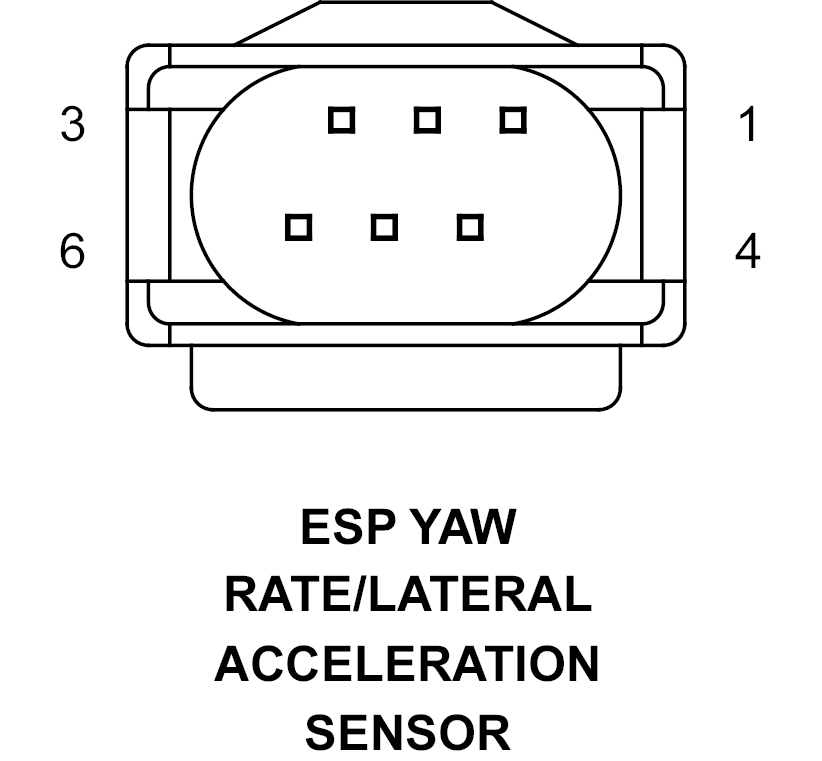

ESP YAW RATE/LATERAL ACCELERATION SENSOR - 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20DG |
S-CAN (-) |
| 2 |
20WT |
S-CAN (+) |
| 3 |
20RD/DG |
5 VOLT SUPPLY |
| 4 |
- |
- |
| 5 |
20BR |
SENSOR GROUND |
| 6 |
20BL/YL |
STEERING ANGLE SENSOR SIGNAL |
