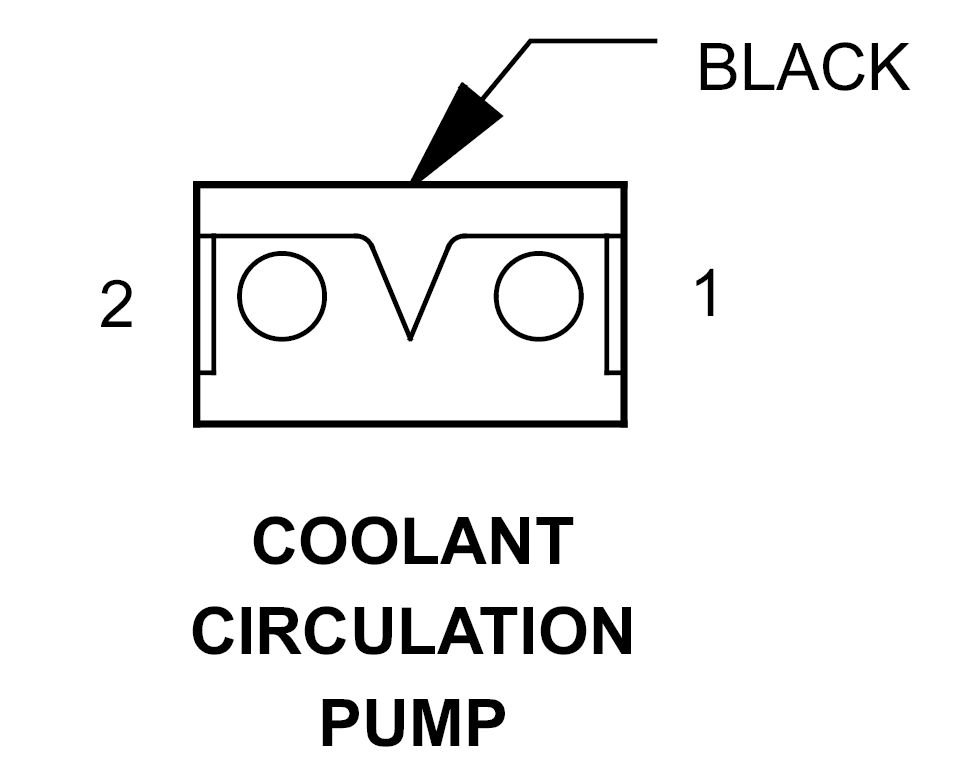

Coolant Circulation Pump Connector End View
COOLANT CIRCULATION PUMP - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20RD/YL |
FUSED B(+) |
| 2 |
20BR/DG |
COOLANT CIRCULATION PUMP CONTROL |
