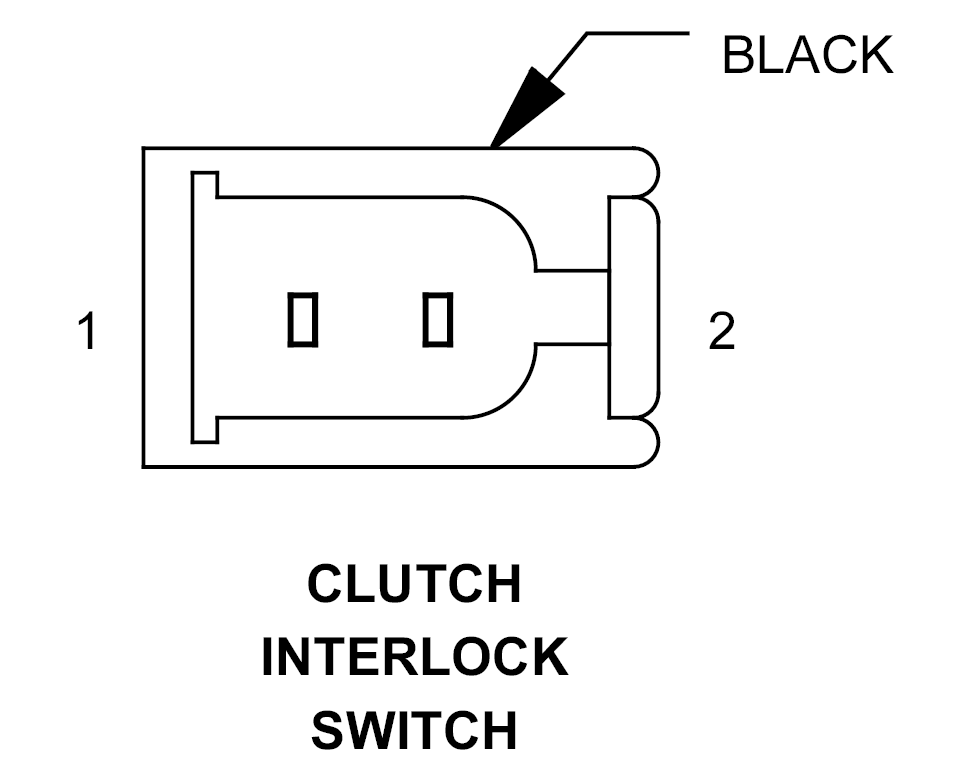

Clutch Interlock Switch Connector End View
CLUTCH INTERLOCK SWITCH - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20VT |
FUSED IGNITION SWITCH OUTPUT |
| 2 |
20VT |
CLUTCH INTERLOCK SWITCH OUTPUT |
| 2 |
20VT |
CLUTCH INTERLOCK SWITCH OUTPUT |
