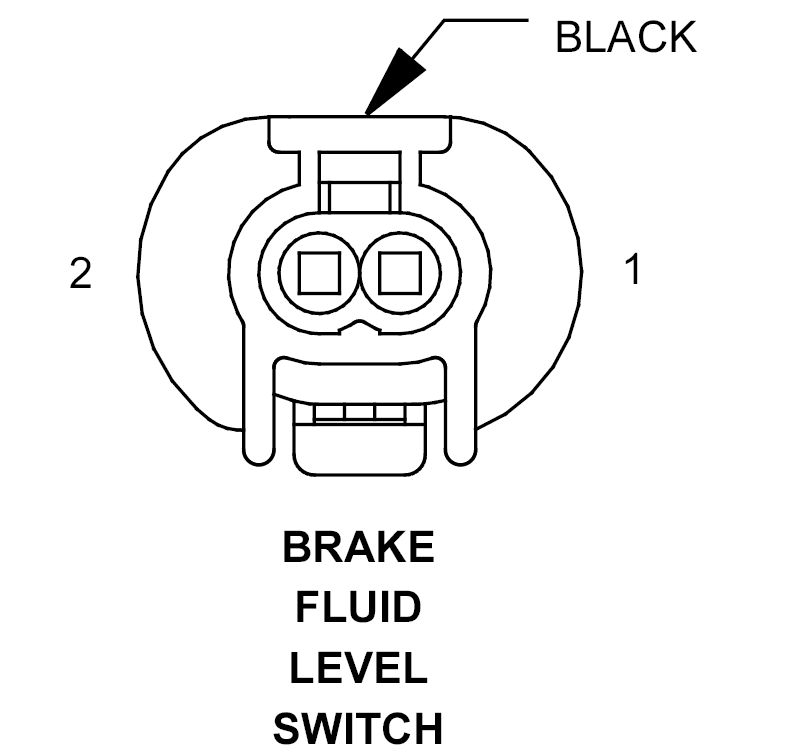

Brake Fluid Level Switch Connector End View
BRAKE FLUID LEVEL SWITCH - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR |
GROUND |
| 2 |
20BR/WT |
BRAKE FLUID LEVEL SWITCH SENSE |
