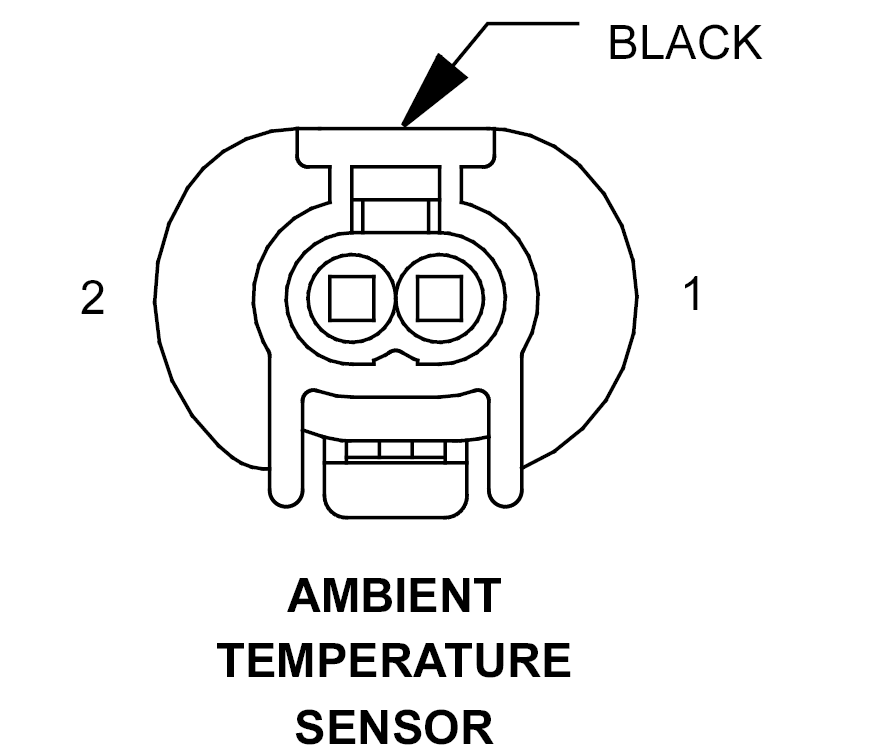

Ambient Temperature Sensor Connector End View
AMBIENT TEMPERATURE SENSOR - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20DG |
AMBIENT TEMPERATURE SENSOR SIGNAL |
| 2 |
20BR |
SENSOR GROUND |
