Circuit Schematic

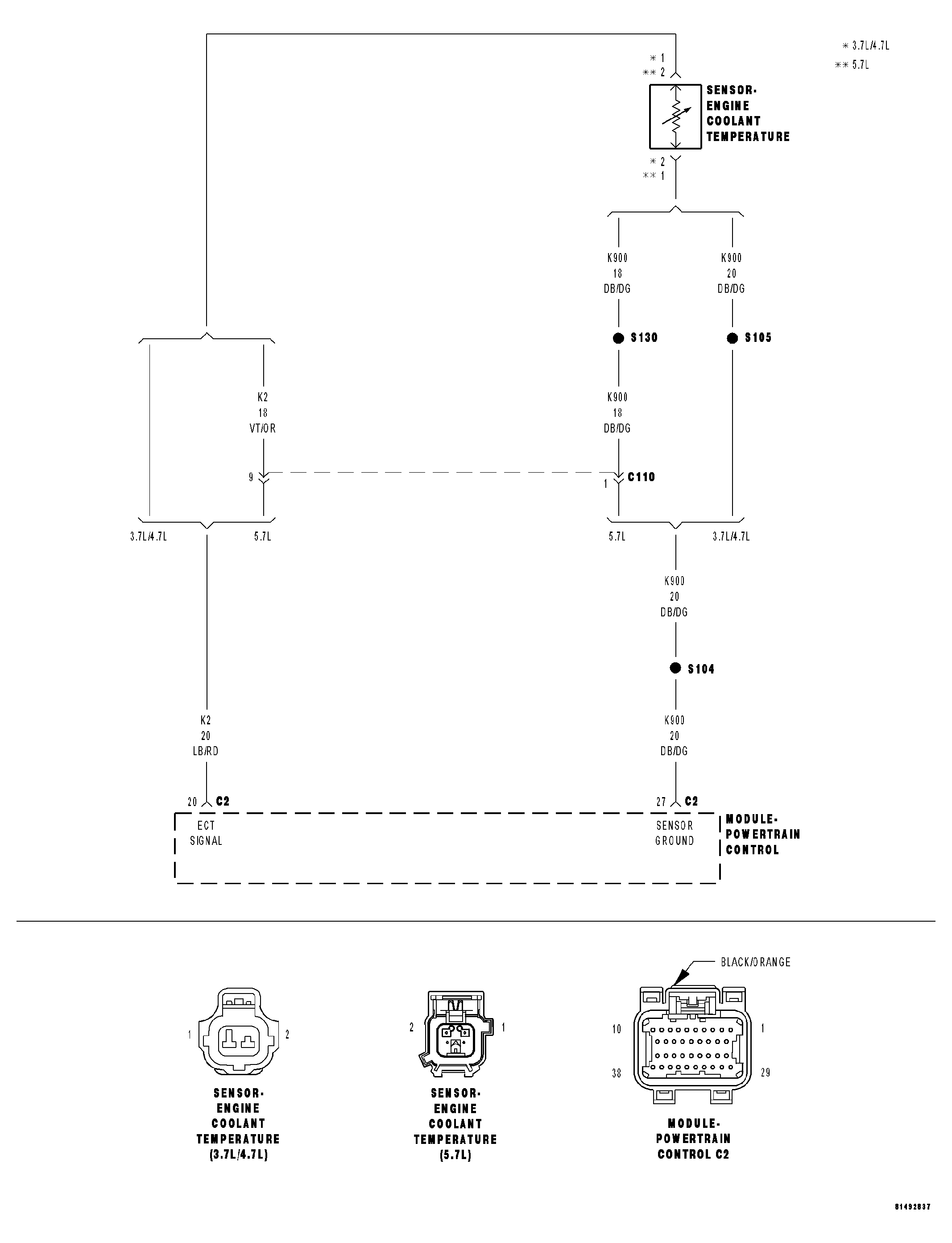

Fig 1: Engine Coolant Temperature Sensor Circuit Schematic
GC0011519Courtesy of CHRYSLER LLC
