Circuit Schematic

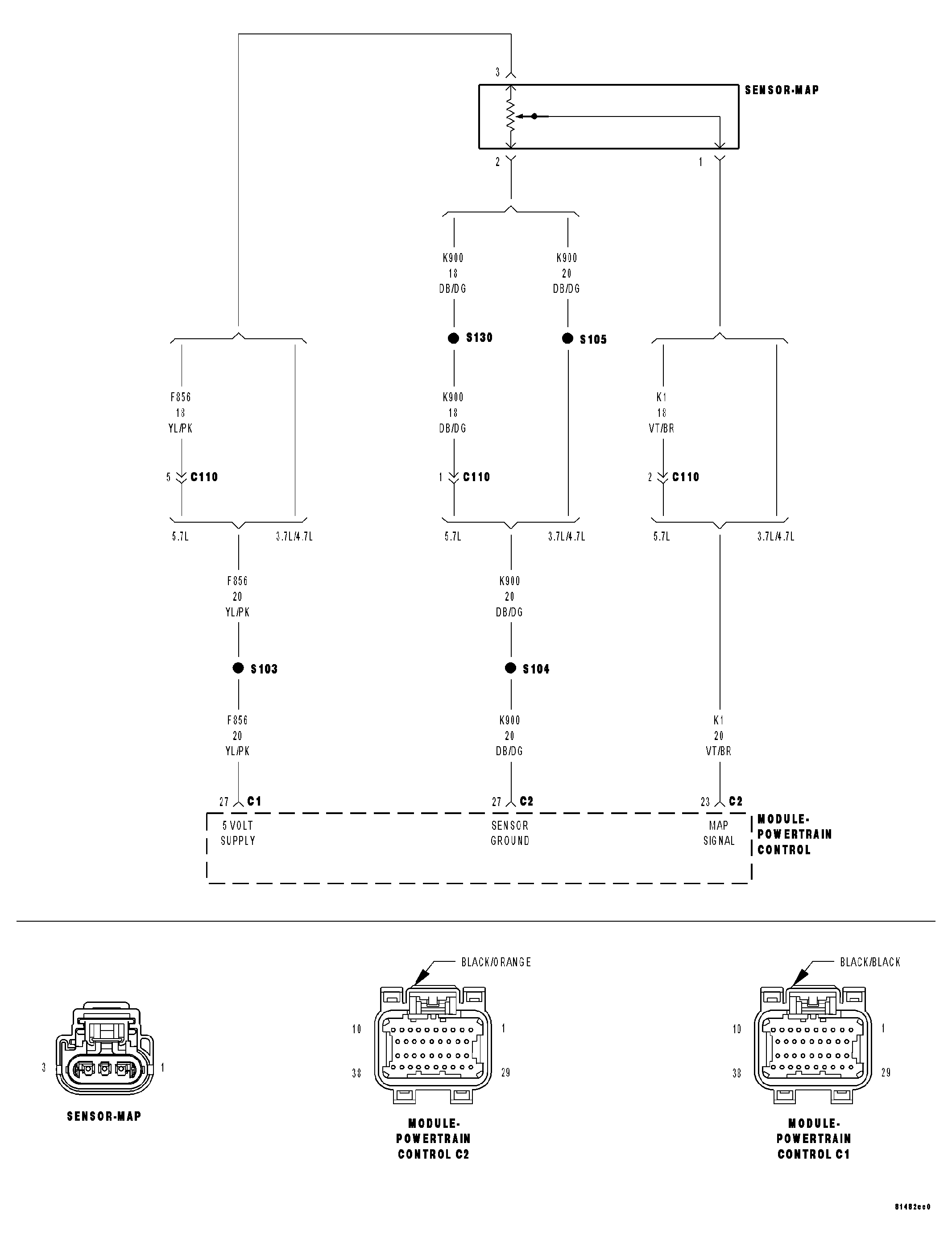

Fig 1: Manifold Absolute Pressure Sensor Circuit Schematic
GC0011510Courtesy of CHRYSLER LLC
