Installation

2.7L

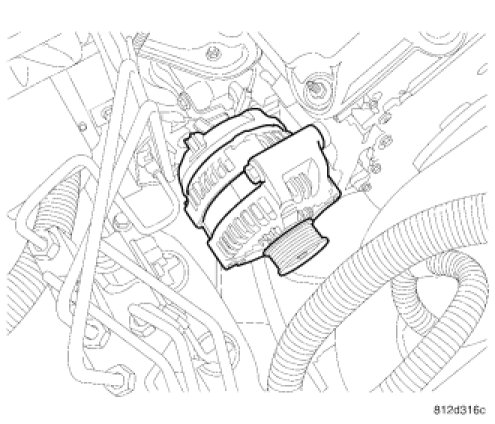

1. Install generator.

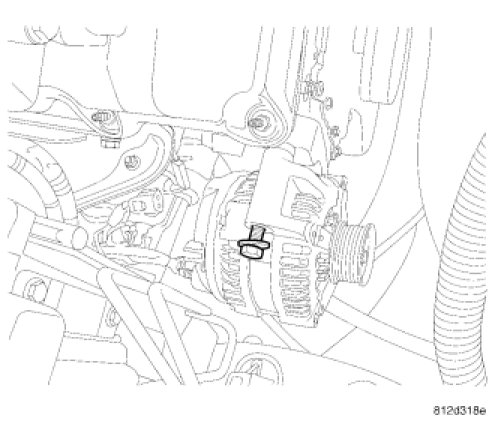

2. Install upper bolt mounting bolt.

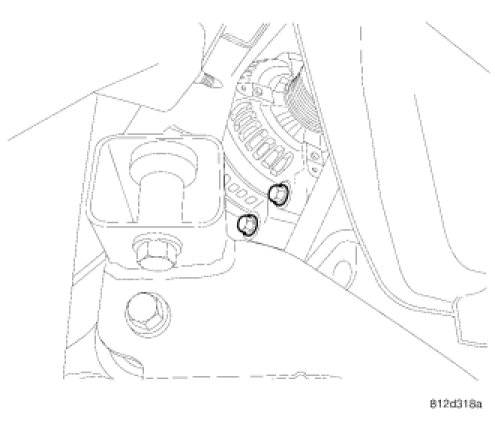

3. Install 2 lower mounting bolts.

4. Tighten bolts to 65 Nm (48 ft. lbs.).

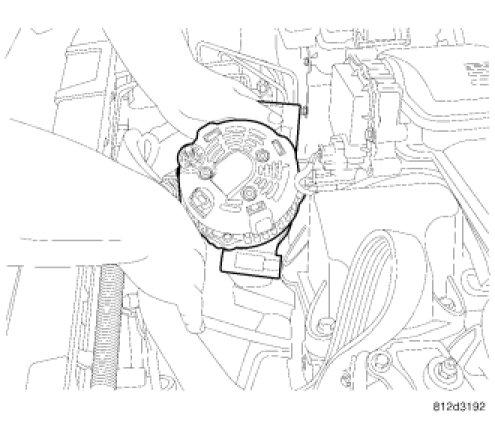

5. Install B+ terminal nut and wire. Tighten nut to 13 Nm (115 in. lbs.).

6. Connect generator field circuit plug.

7. Install generator drive belt.

8. Connect negative battery cable.
