42RLE Automatic Transmission






42RLE AUTOMATIC TRANSMISSION

General Specifications:






Gear Ratios:






Bearing Preload (Drag Torque):






Clutch Pack:






Input Shaft:






Oil Pump Clearances:

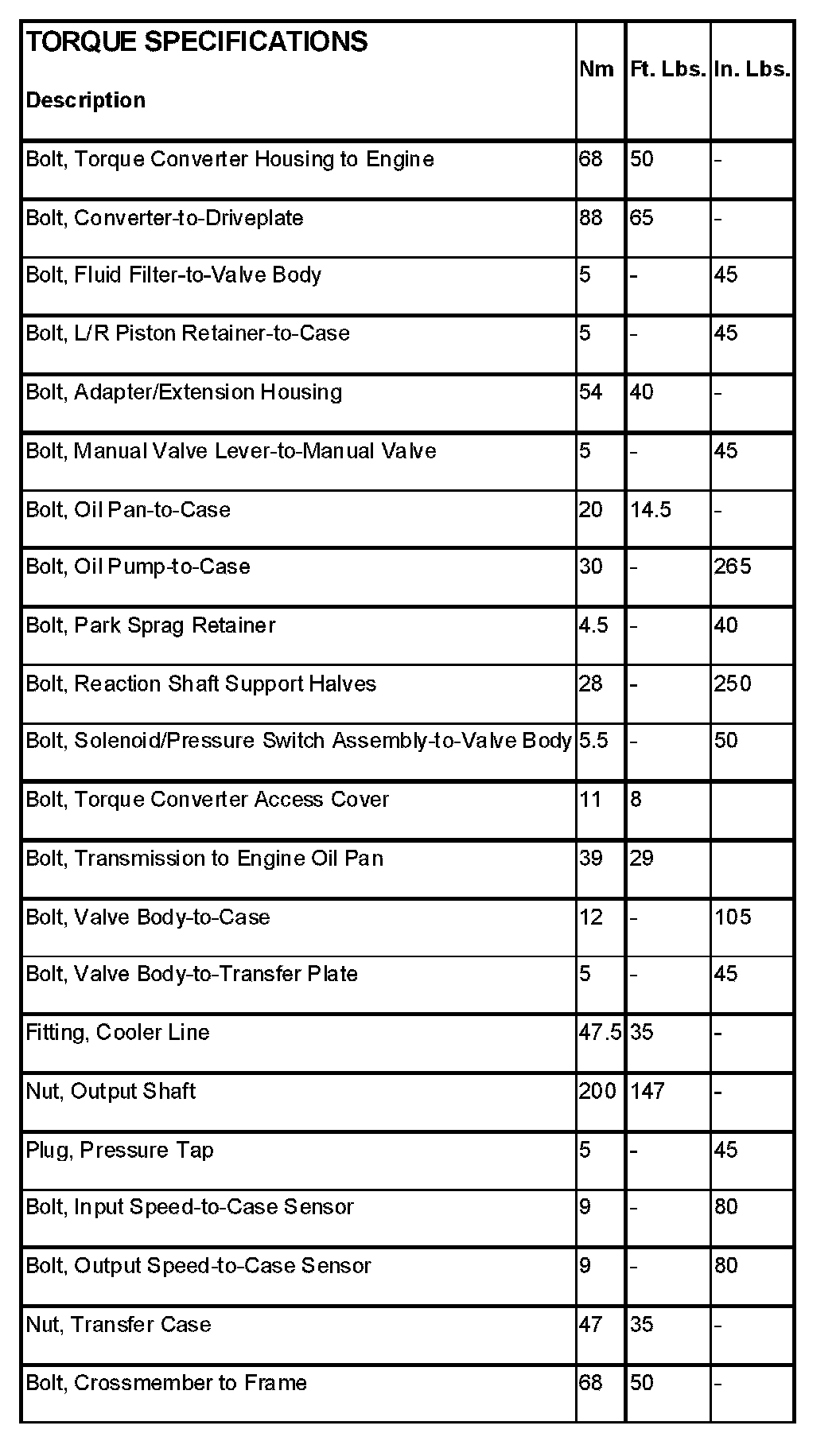

Torque Specifications (Part 1):




Torque Specifications (Part 2):
