Sensor-Side Impact-Left 1

Component ID: 533
Component : SENSOR-SIDE IMPACT-LEFT 1

Connector:
Name : SENSOR-SIDE IMPACT-LEFT 1
Color : GRAY
# of pins : 2




Pin Description Circuit
1 LEFT SIDE IMPACT SENSOR 1 GROUND R15 20LG/BR
2 LEFT SIDE IMPACT SENSOR 1 SIGNAL R13 20LG/TN

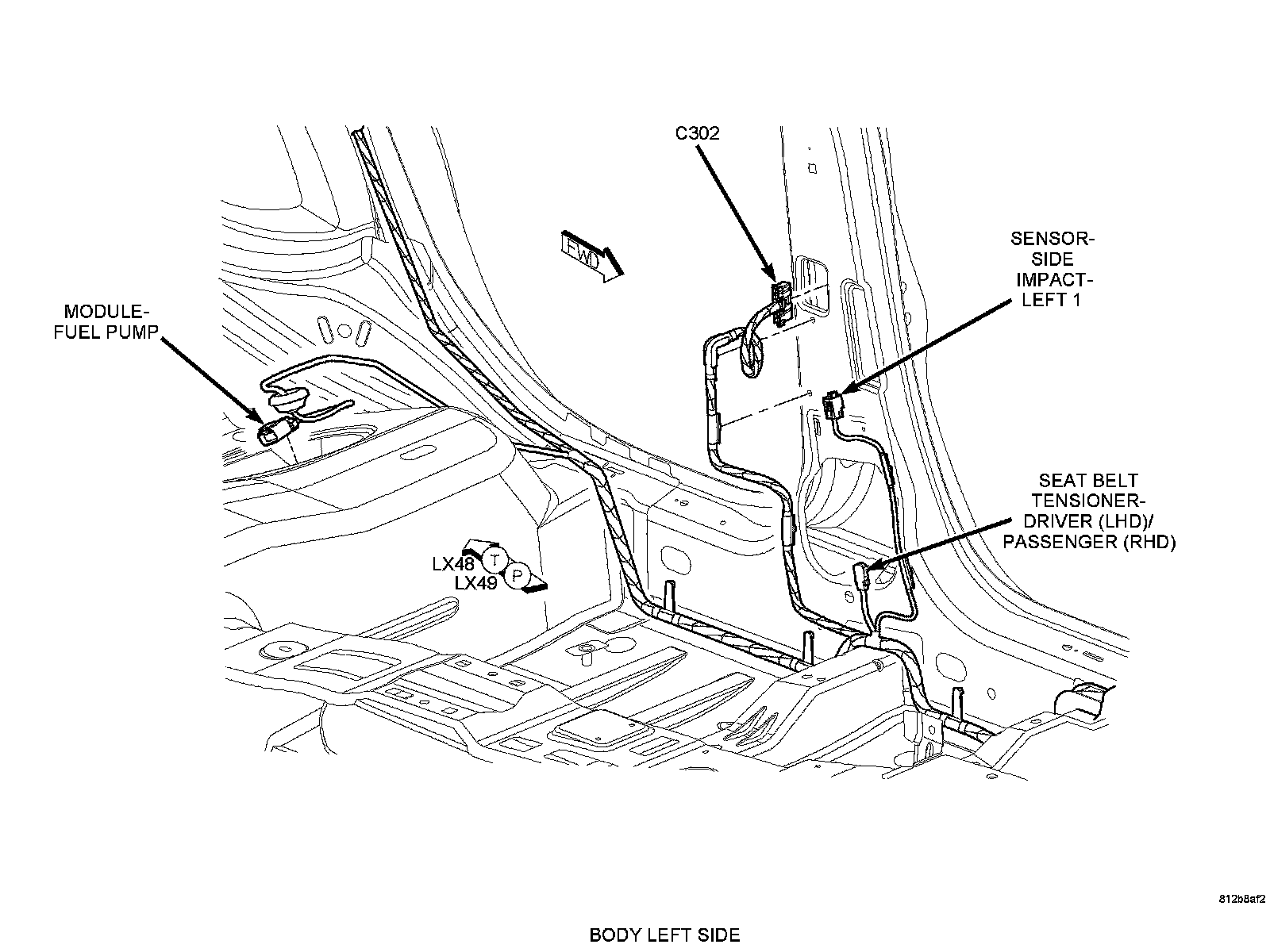

Component Location - 60
