Switch-Traction Control: Description

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

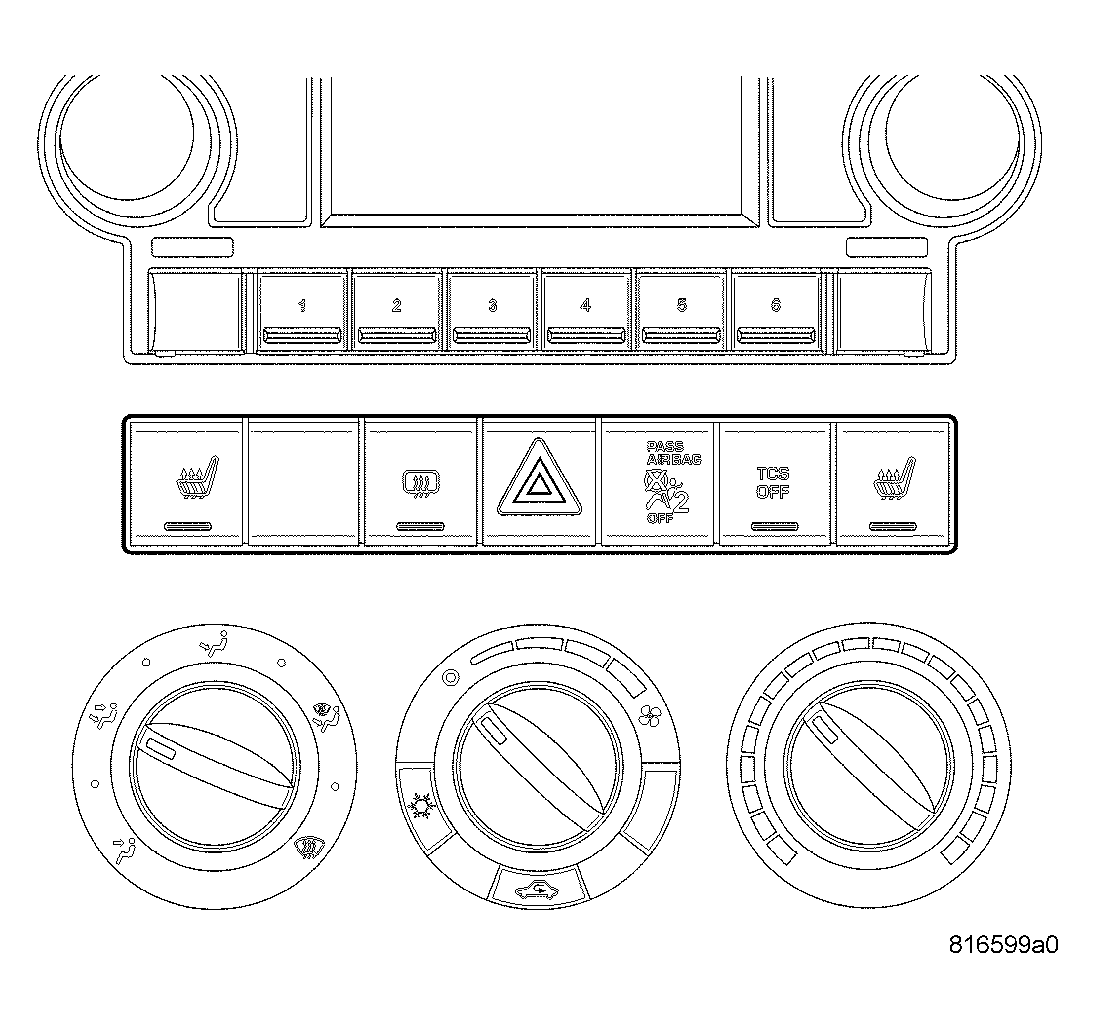

Fig 1: Switch Pod In IP Center Stack
GC0041245Courtesy of DAIMLERCHRYSLER CORP.

The Traction Control Off Switch (TCS OFF or ASR OFF on Export vehicles) is part of the Instrument Panel Switch Pod located in the center of the instrument panel below the radio. The traction control Off switch turns the traction control off whenever the switch is depressed. Depressing the switch a second time turns the traction control back on. The switch resets itself each time the ignition is cycled.

The traction control Off switch is serviced as part of the Instrument Panel Switch Pod.
