Power Seat Track: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

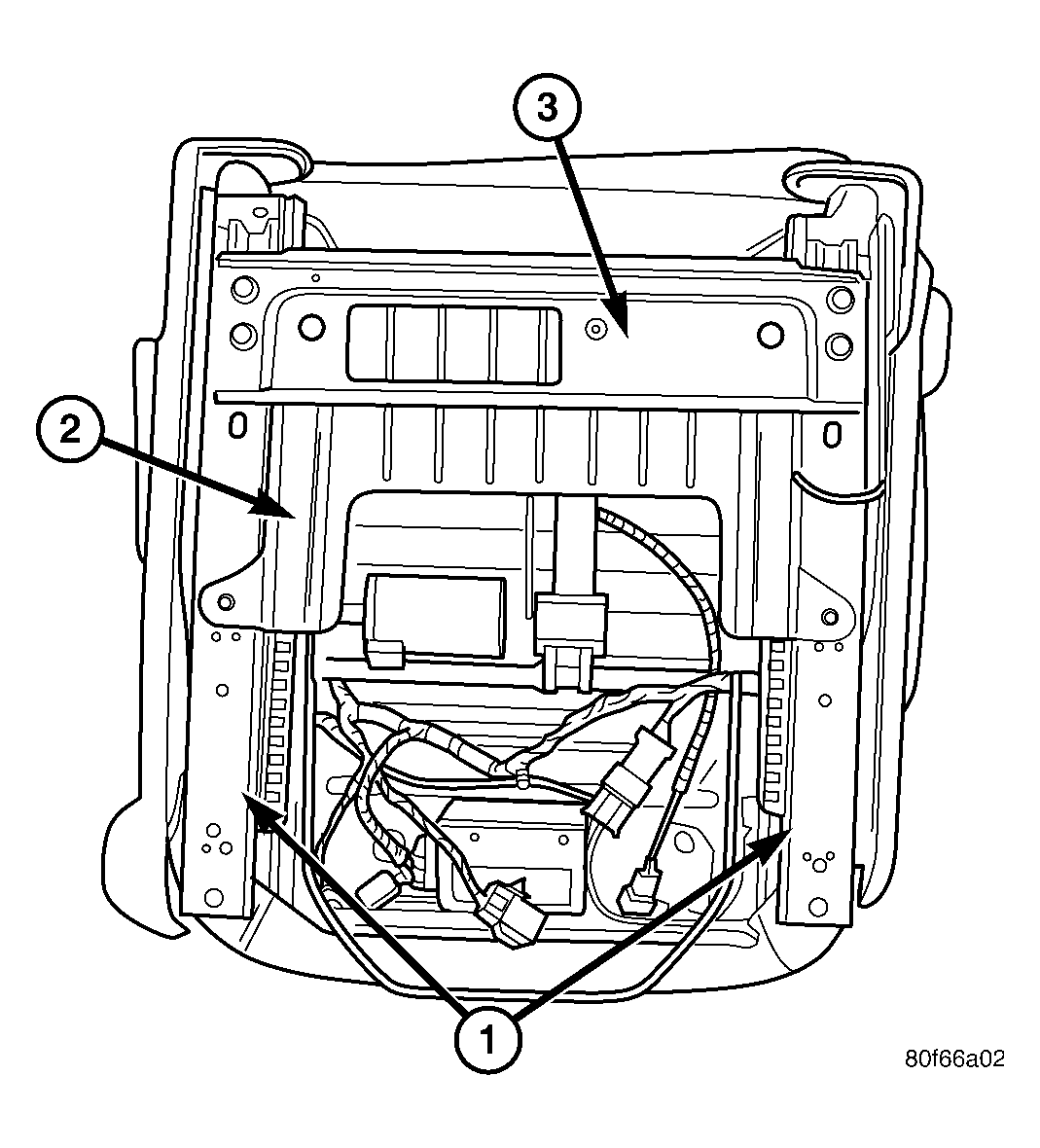

Fig 1: Locating Power Seat Track
GC0022968Courtesy of DAIMLERCHRYSLER CORP.
  1. Reinstall the power seat track (1) onto the seat cushion frame. Torque bolts to 28 N.m (21 ft. lbs).
  2. Secure and connect the power seat wire harness on the power seat track (1).
  3. Install the seat cushion side shields.
  4. Install the lower seat track cover (2).
  5. Install the bolts retaining the rear riser (3). Torque bolts to 28 N.m (21 ft. lbs).

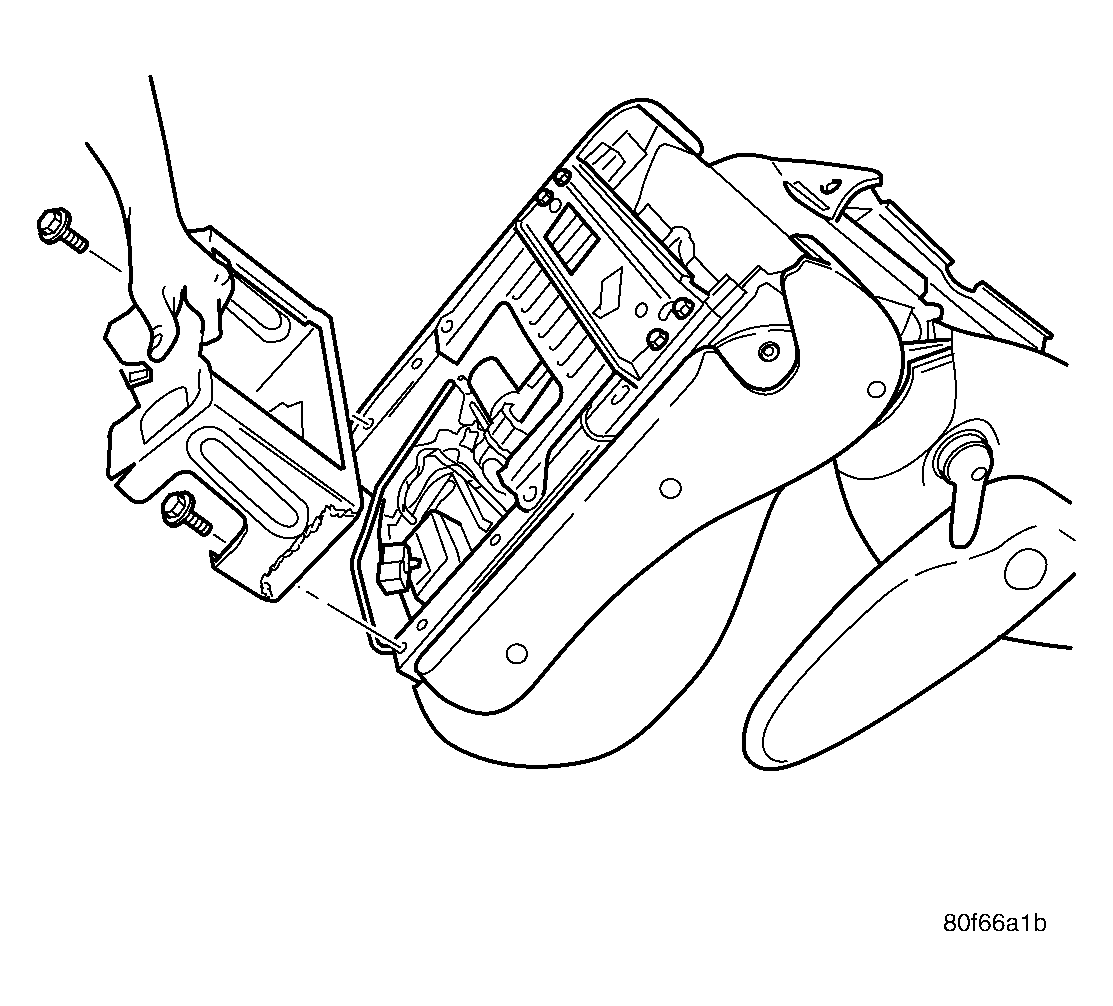

    Fig 2: Seat Front Riser Removal/Installation
    GC0022969Courtesy of DAIMLERCHRYSLER CORP.
  6. Install the bolts retaining the front riser. Torque bolts to 28 N.m (21 ft. lbs).
  7. Reinstall the power seat assembly into the vehicle, (Refer to BODY/SEATS/SEAT - INSTALLATION) . Torque bolts to 61 N.m (45 ft. lbs).
  8. Reconnect the battery negative cable.
