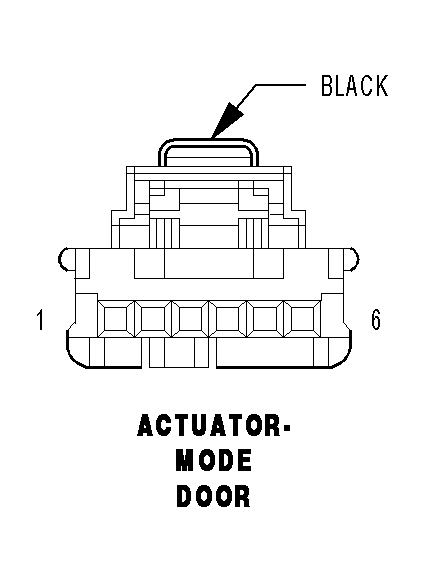

Mode Door Actuator Connector End View
ACTUATOR-MODE DOOR - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C66 20DB/OR |
MODE DOOR COMMON DRIVER |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
C266 20OR/DB |
MODE DOOR DRIVER |
