Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Circuit Breaker No. 1 | In power distribution center. See Figure. |
| Circuit Breaker No. 2 | In power distribution center. See Figure. |
| Circuit Breaker No. 3 | In power distribution center. See Figure. |
| Fusible Link Eyelet (Starter) | Rear of starter. See Figure. |

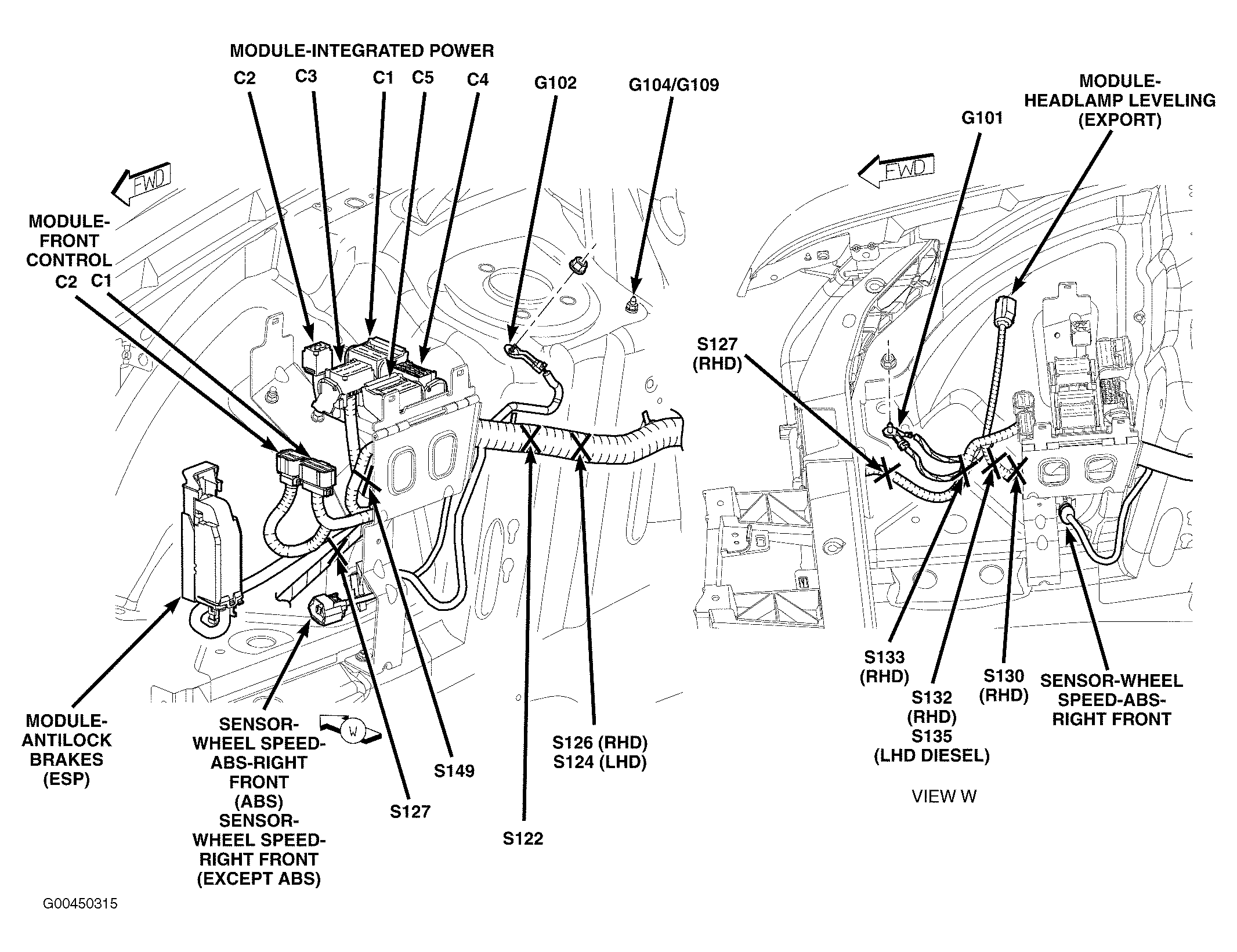

| Integrated Power Module | At right side of engine compartment. See Figure. |
| Power Distribution Center (Except Magnum) | At right rear of trunk. See Figure. |
| Power Distribution Center (Magnum) | At right rear of trunk. See Figure. |
