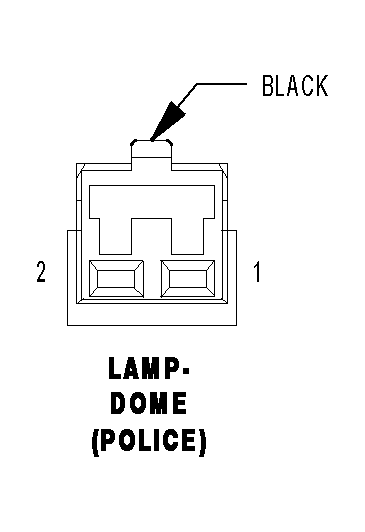

Dome Lamp (Police) Connector End View
LAMP-DOME (POLICE) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A932 18RD |
FUSED B(+) |
| 2 |
Z909 18BK/LG |
GROUND |
