U0141-Lost Communication With Front Control Module: Notes

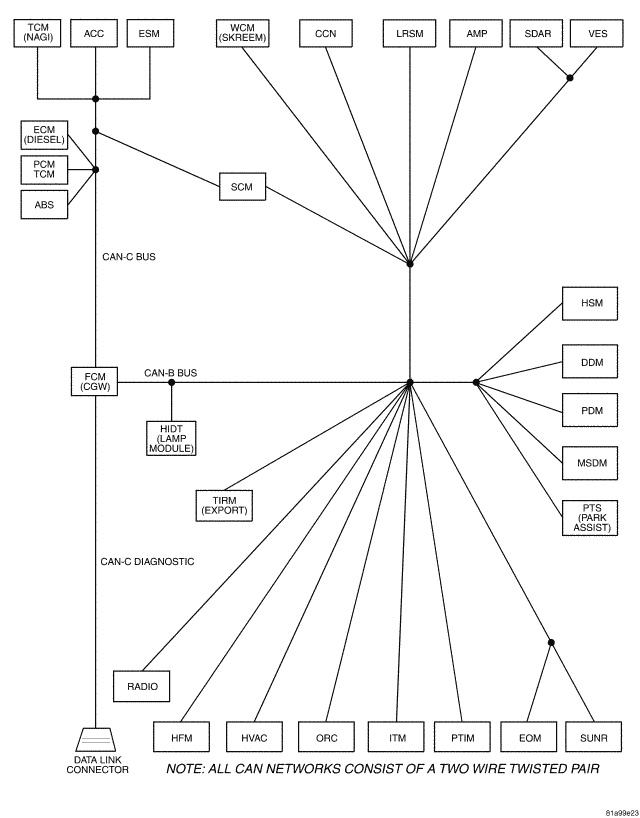

Fig 1: CAN Network
GC0052473Courtesy of CHRYSLER LLC
