Speed Sensor - Output: Installation
Courtesy of DAIMLERCHRYSLER CORP.

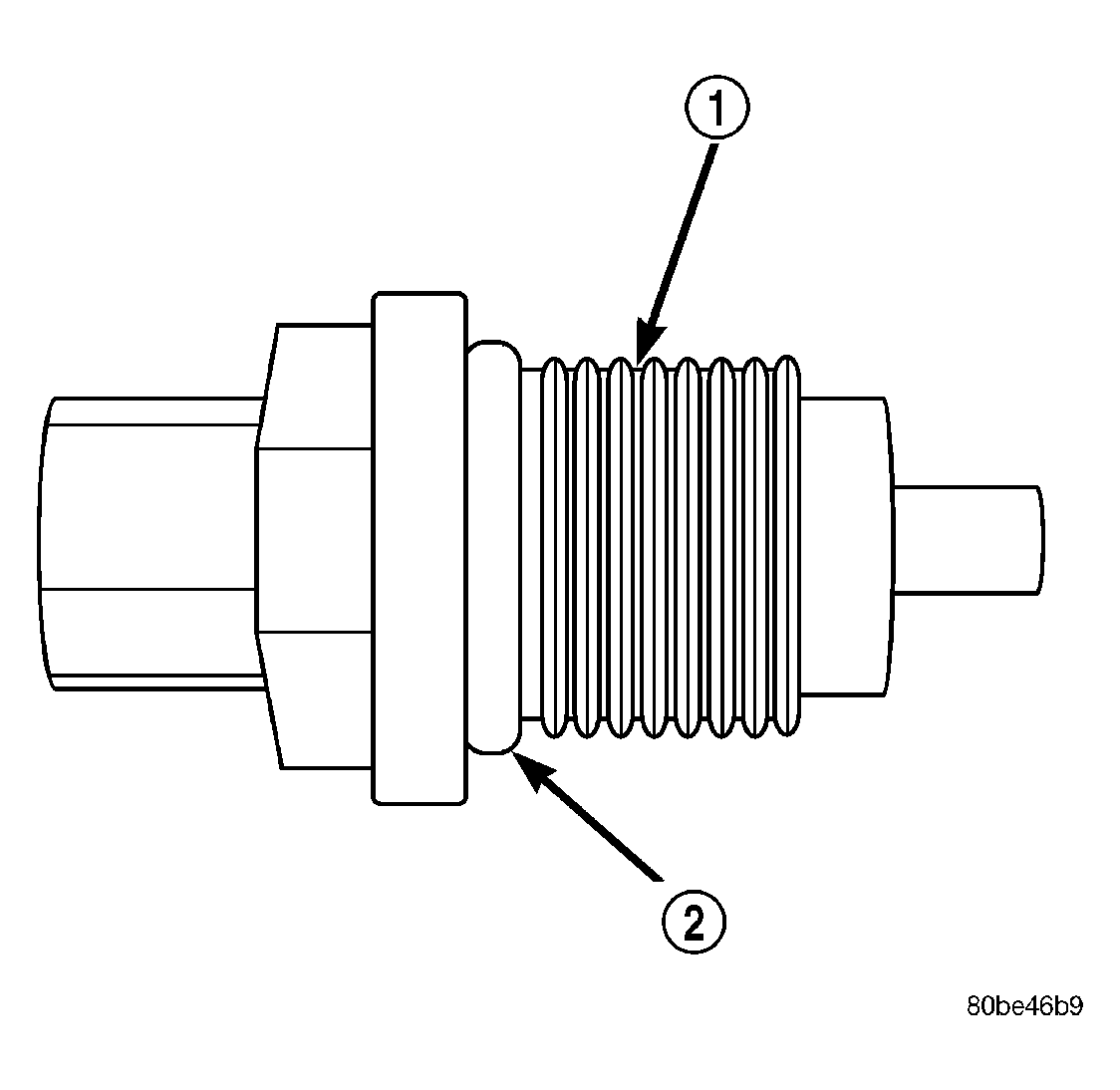

| 1 - OUTPUT SPEED SENSOR |
| 2 - O-RING |
- Verify o-ring (2). See Fig 1is installed into position.
Courtesy of DAIMLERCHRYSLER CORP.
- Install and tighten output speed sensor (1) to 27 N.m (20 ft. lbs.). See Fig 2.
Courtesy of DAIMLERCHRYSLER CORP.

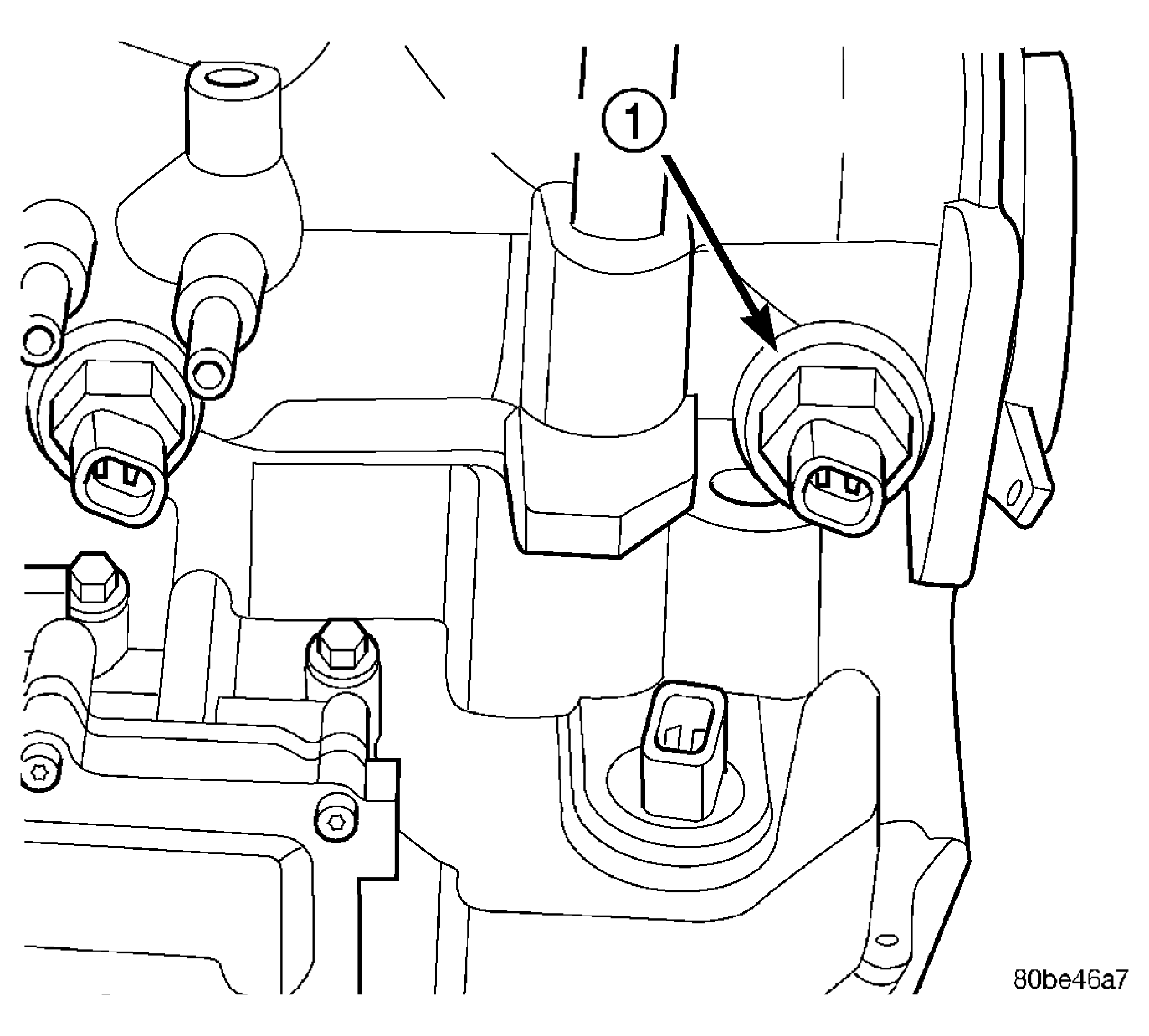

| 1 - SOLENOID PACK CONNECTOR |
| 2 - INPUT SPEED SENSOR CONNECTOR |
| 3 - OUTPUT SPEED SENSOR CONNECTOR |
| 4 - TRANSMISSION RANGE SENSOR CONNECTOR |
- Connect output speed sensor connector (3). See Fig 3.
- Connect battery negative cable.
