Speed Sensor - Input: Installation
Courtesy of DAIMLERCHRYSLER CORP.

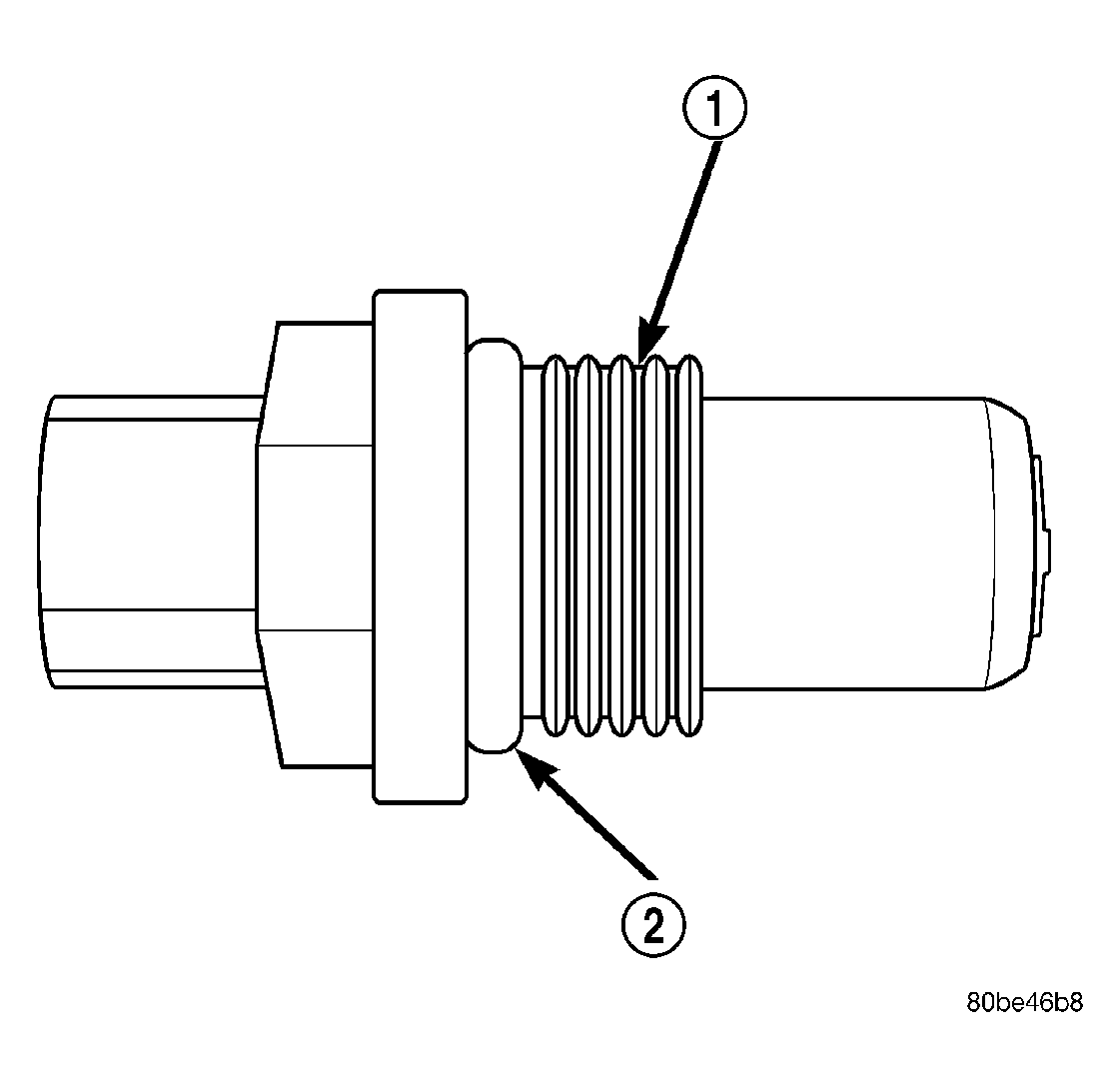

| 1 - INPUT SPEED SENSOR |
| 2 - O-RING |
- Inspect speed sensor o-ring (2) and replace if necessary. See Fig 1.
Courtesy of DAIMLERCHRYSLER CORP.

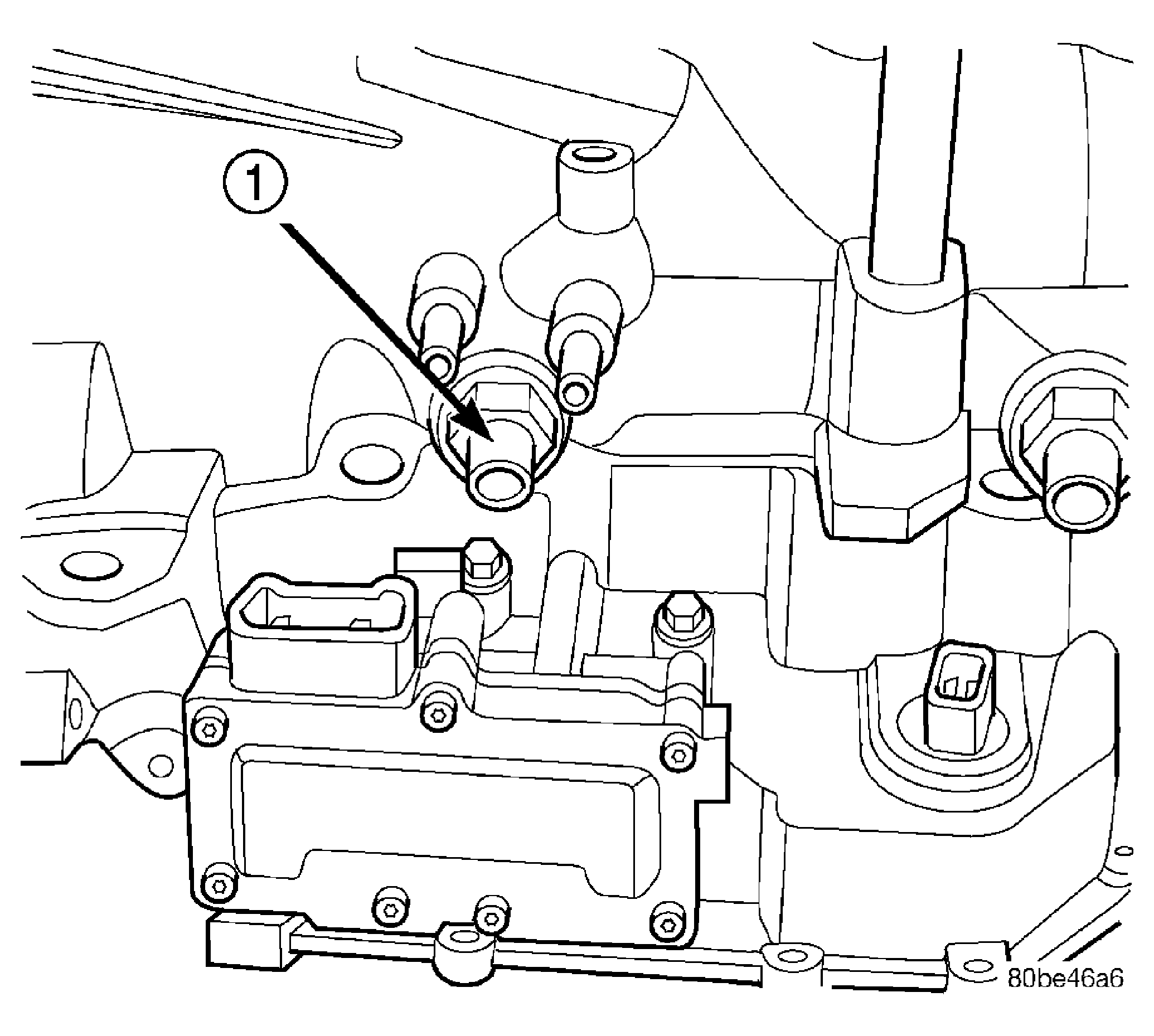

- Install and tighten the input speed sensor (1). See Fig 2to 27 N.m (20 ft. lbs.).
Courtesy of DAIMLERCHRYSLER CORP.

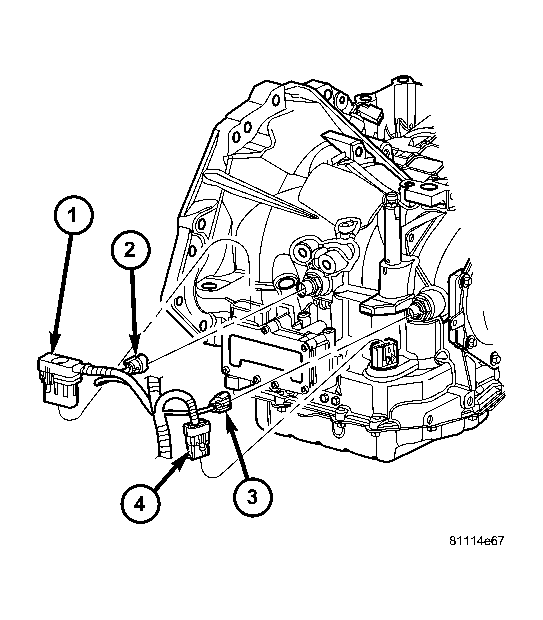

| 1 - SOLENOID PACK CONNECTOR |
| 2 - INPUT SPEED SENSOR CONNECTOR |
| 3 - OUTPUT SPEED SENSOR CONNECTOR |
| 4 - TRANSMISSION RANGE SENSOR CONNECTOR |
- Connect input speed sensor connector (2). See Fig 3.
- Connect battery negative cable.
