Shift Interlock Mechanism: Installation
Courtesy of DAIMLERCHRYSLER CORP.

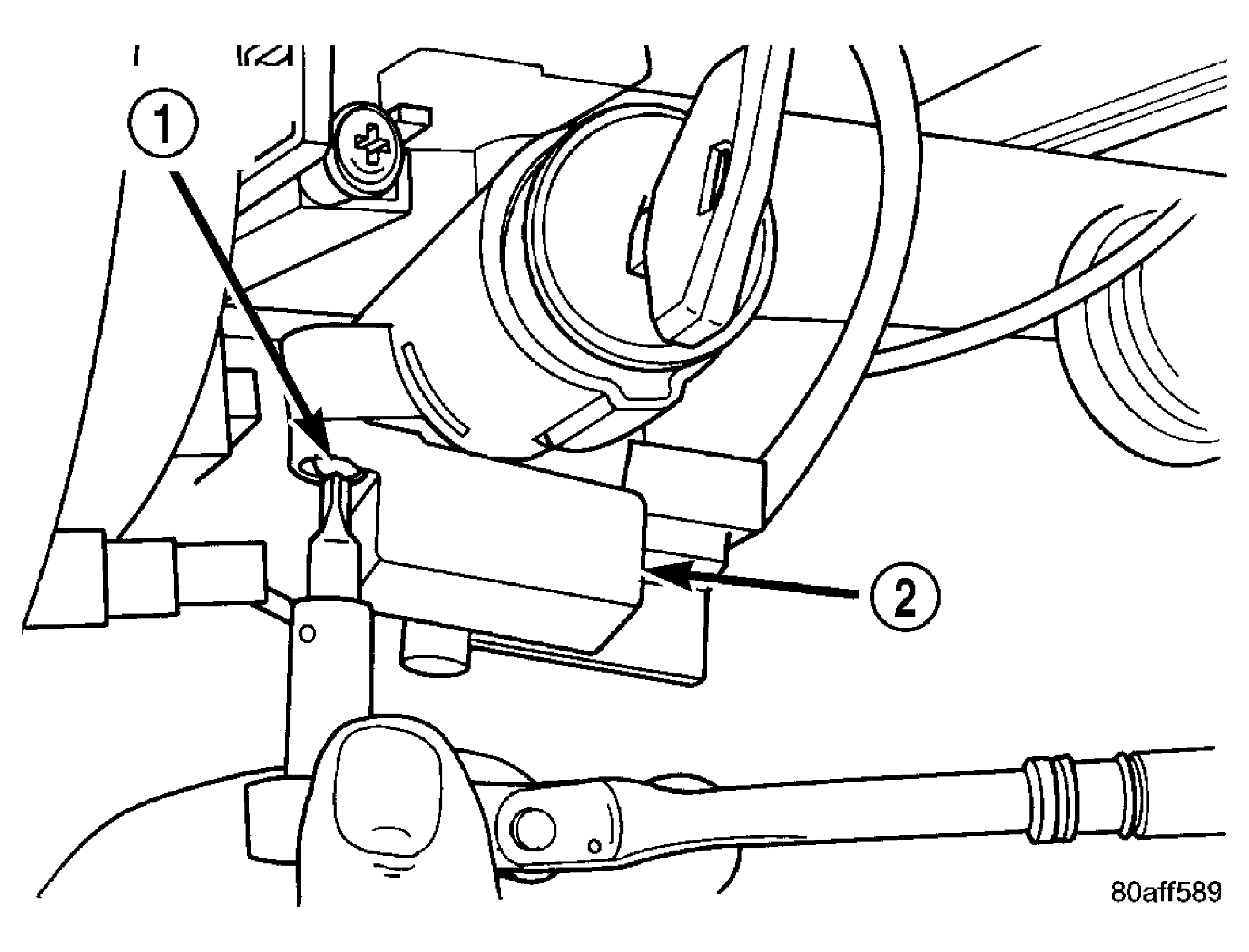

| 1 - MOUNTING SCREW |
| 2 - INTERLOCK MECHANISM |
- Position the interlock housing at steering column. Install the interlock mechanism to steering column attaching screws (1). See Fig 1. Torque screws to 3 N.m (21 in. lbs.).
- Snap the interlock cable into the housing.
- Install the lower column covers, shrouds and knee bolster.
