Coolant Recovery Container - 2.0L/2.4L: Description

The coolant recovery system consists of a container and an overflow hose that is connected to the coolant outlet connector. See Fig 1. The coolant recovery container is mounted in the right side engine compartment.

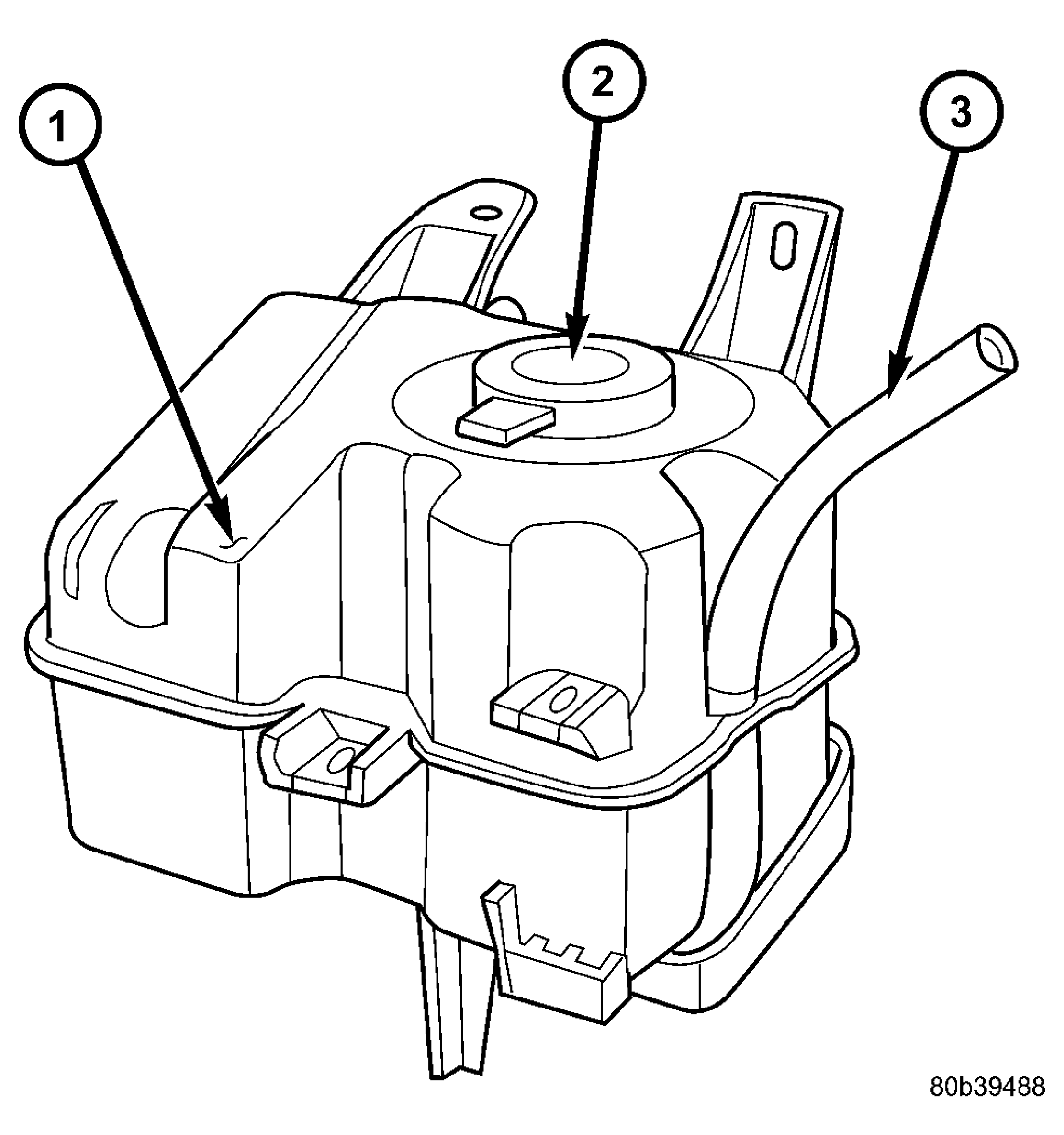

Fig 1: Coolant Recovery Container - 2.0L/2.4L
GC0031150Courtesy of DAIMLERCHRYSLER CORP.
1 - COOLANT RECOVERY CONTAINER
2 - CONTAINER FILL CAP
3 - OVERFLOW HOSE
