Transmission Control Relay

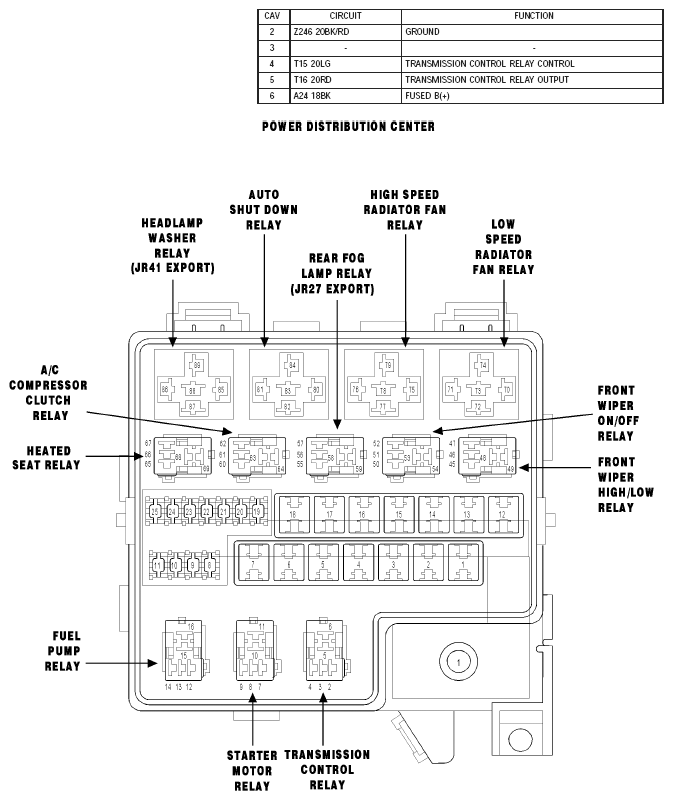

Fig 1: Identifying Power Distribution Center - Transmission Control Relay
G04762849Courtesy of CHRYSLER
