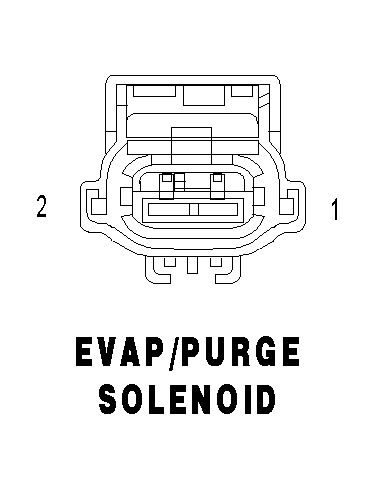

EVAP Purge Solenoid Connector End View
EVAP/PURGE SOLENOID - 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K52 20PK/BK |
EVAP PURGE CONTROL |
| 2 |
K108 20WT/TN |
EVAP PURGE RETURN |
