*No Response From All Modules: Notes

WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

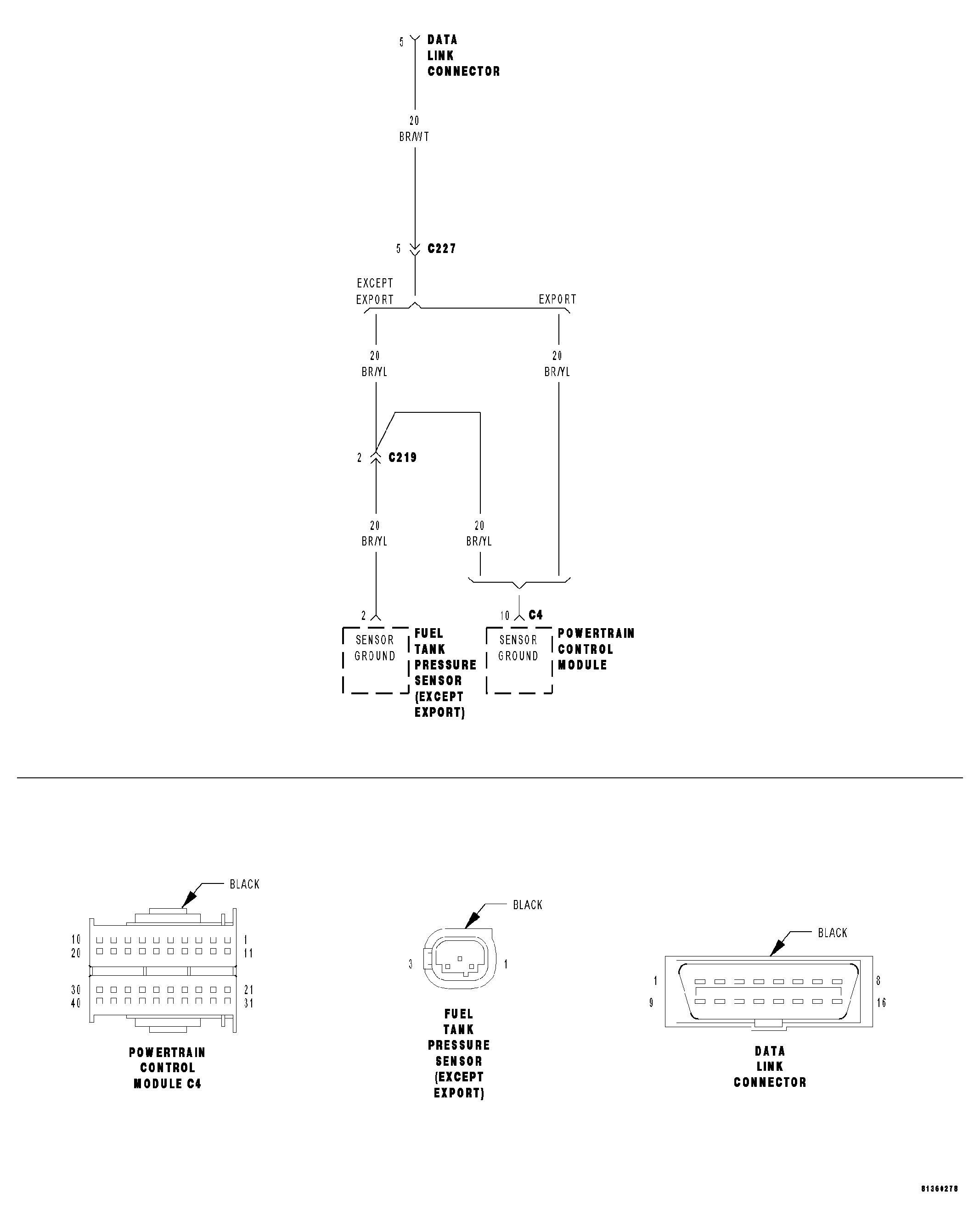

Fig 1: Data Link Connector Sensor Ground Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORP.

POSSIBLE CAUSES
SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
SENSOR GROUND CIRCUIT OPEN
FUEL TANK PRESSURE SENSOR
POWERTRAIN CONTROL MODULE

For a complete Data Link Connector Circuit Diagram, (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES - SCHEMATICS AND DIAGRAMS) .
