Starter Motor: Installation

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the starter.
  2. Install the lower bolt.

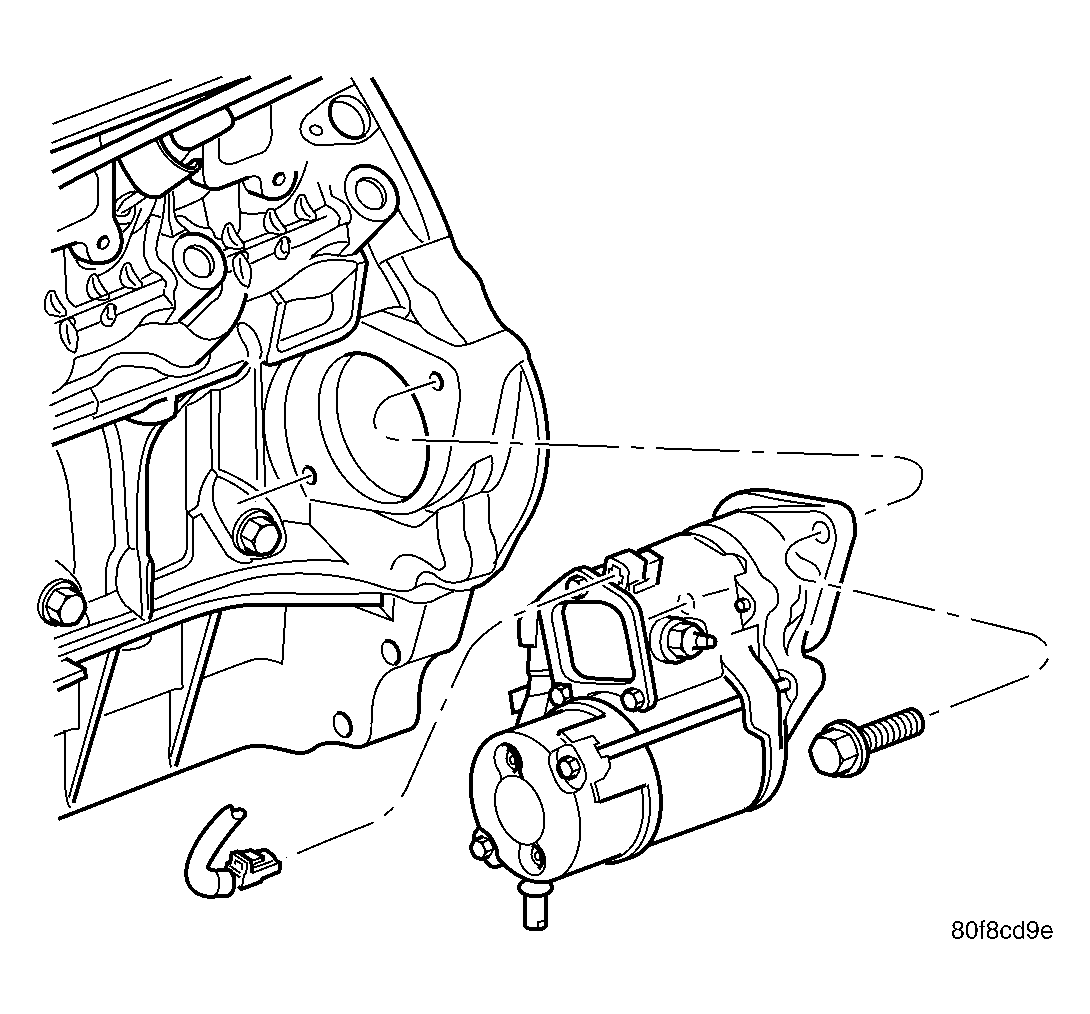

  3. Install the upper bolt. See Figure.
  4. Install the positive battery cable.
  5. Connect the solenoid connector.
  6. Lower vehicle.

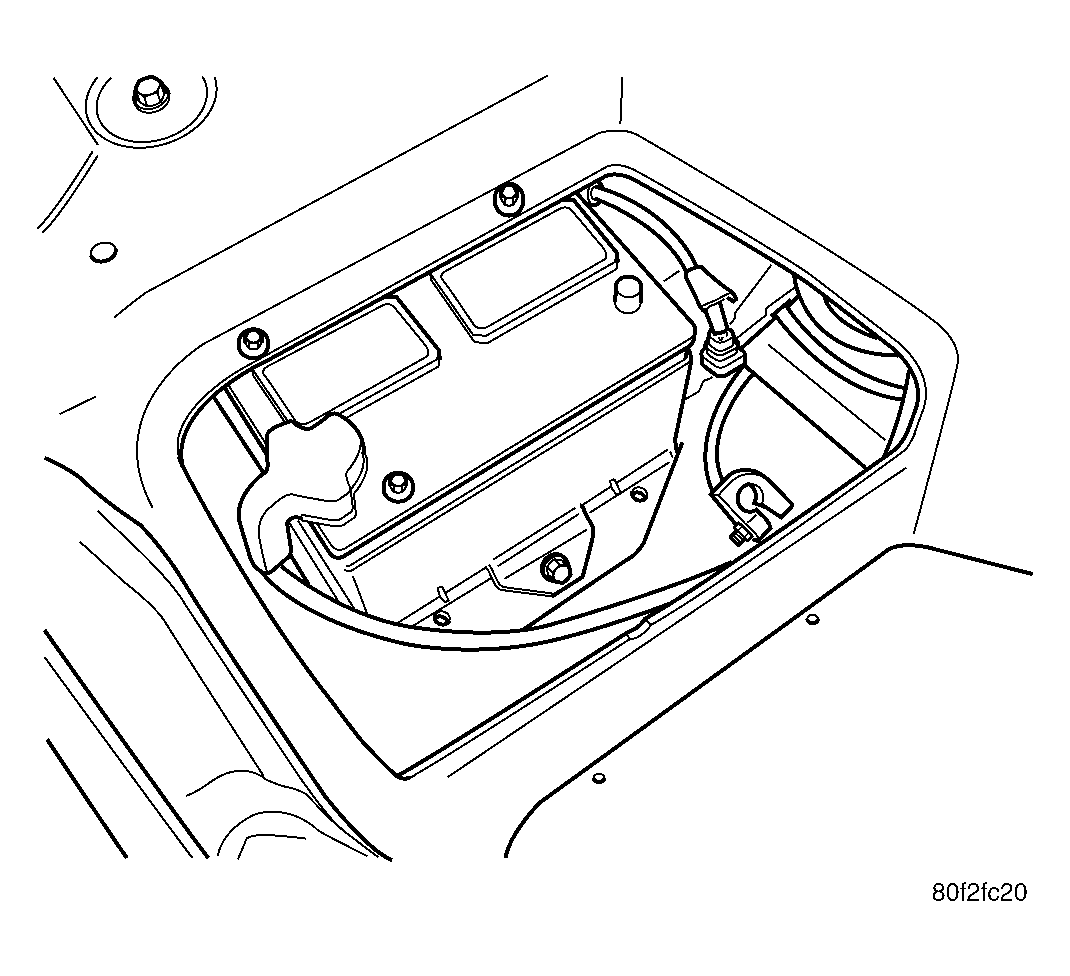

  7. Connect the negative battery cable. See Figure.
